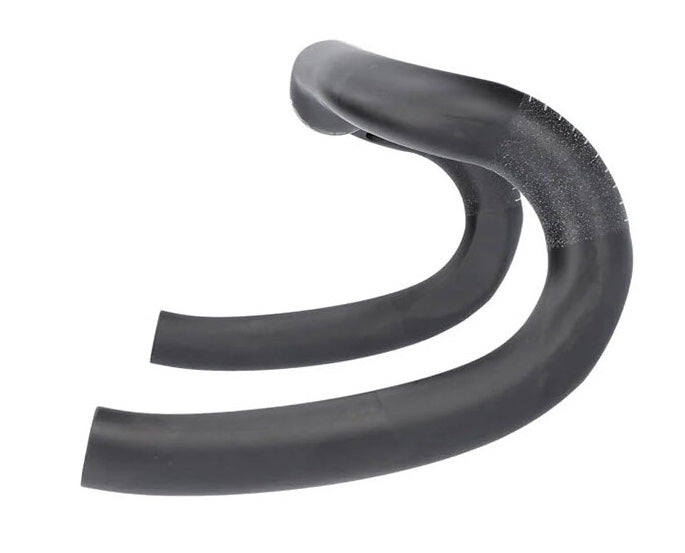

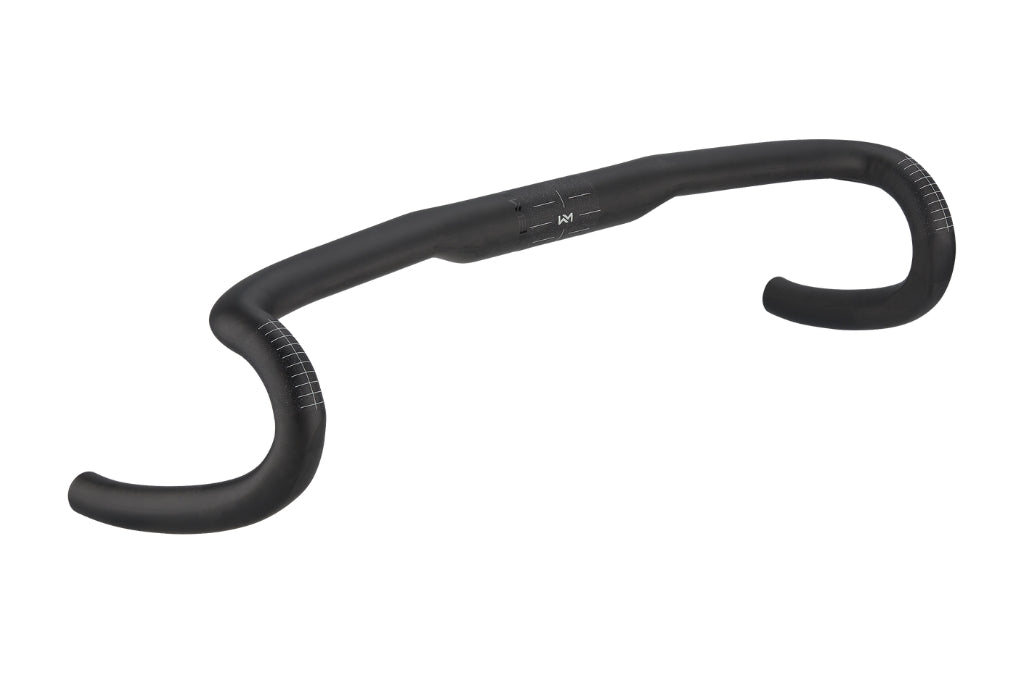

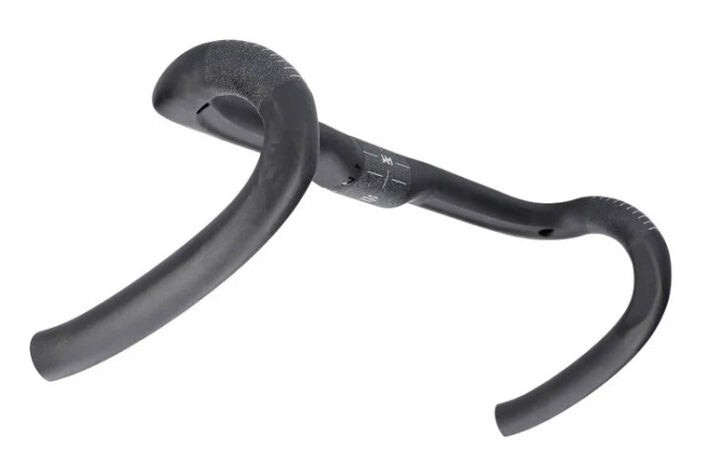

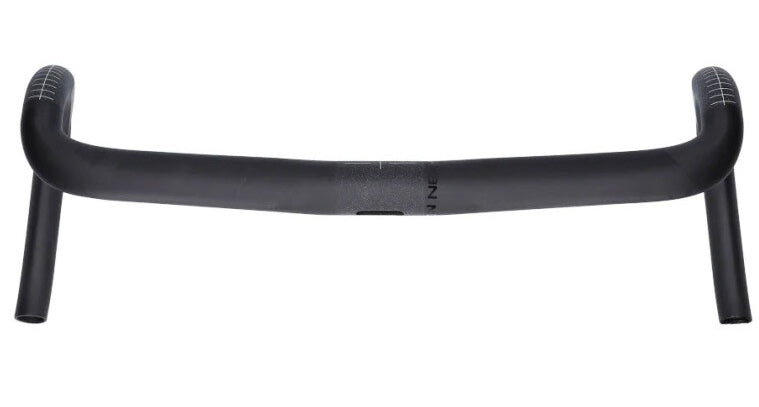

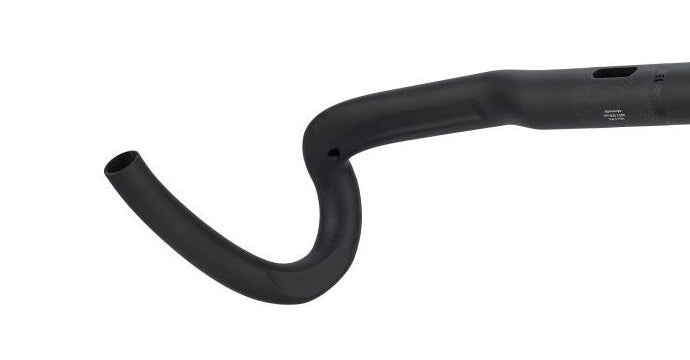

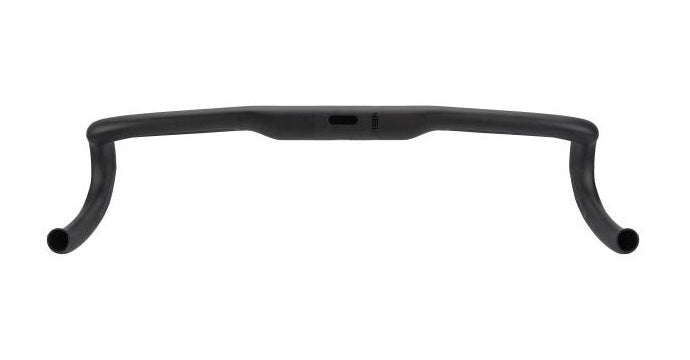

Newmen Dropbar Advanced G

The Advanced G is the perfect bar to wrap your hands around and let rip for any adventure. The newly developed Newmen gravel bike handlebars offer a level of ergonomics and performance that is second to none. starting at just 200gr the ergonomic shape was developed by working closely with biomechanics to produce cross-sections and bends that feel natural to the touch. With a downsweep and frontsweep of 4° each, a moderate flare of 12.5° and a reach of 75mm, it provides a natural hand position for maximum comfort on long gravel adventures and multi-day trips.

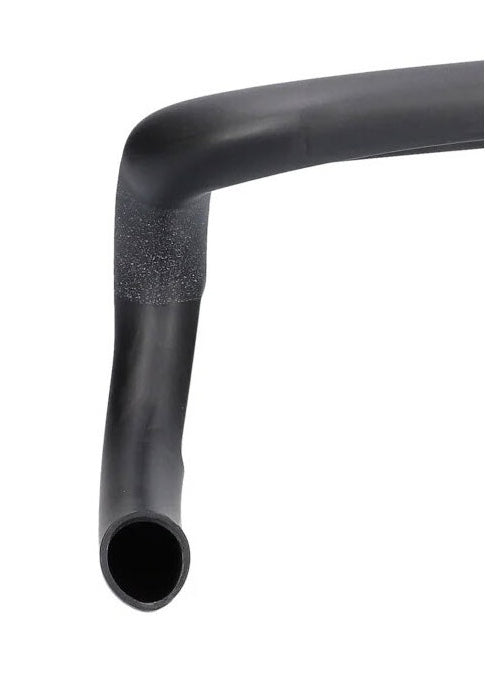

Down- and front sweep allow for a natural hand position even when your arms are narrower than shoulder width. The short reach leaves plenty of room for the forearms in the lower links. The cut-out on the drop (110mm) relieves pressure on the thumb joint and the drop-shaped design of the drop ensures a secure and comfortable grip in rough passages.

Flexible cable routing makes the handlebars extremely versatile: both internal routing through the stem (electronic shifting, two brake cables) and external routing in channels are possible.

**Note: Due to the oval shape of the drops it is not possible to mount the Shimano junction box EW RS910 for 11-speed Di2 into the barends.

The Inside Line:
A genuinely well thought handlebar offering a great ergonomic profile to ensure all day comfort at a feathery light weight.

Features:

Specific Measurements:

• 400mm / 200gr
• 420mm / 210gr
• 440mm / 220gr
• 460mm / 230gr

Compatability:

• Aerobars - Not compatible due to bar proile.
• Shimano Di2 - Yes, but cannot use a bar end junction box from the 11spd version.

Downloads:

• Newmen Road Gravel Handlebar Manual Here
