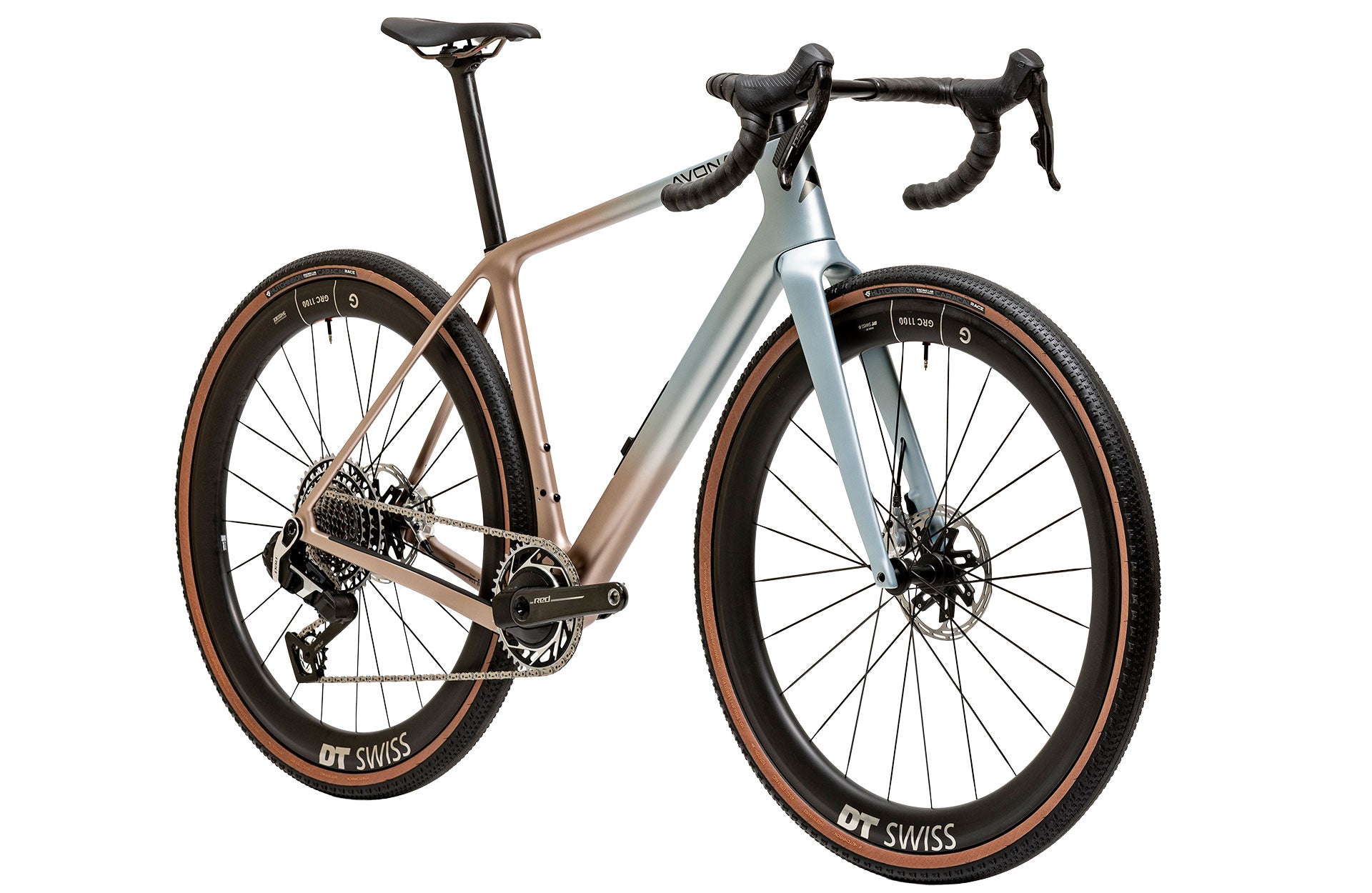

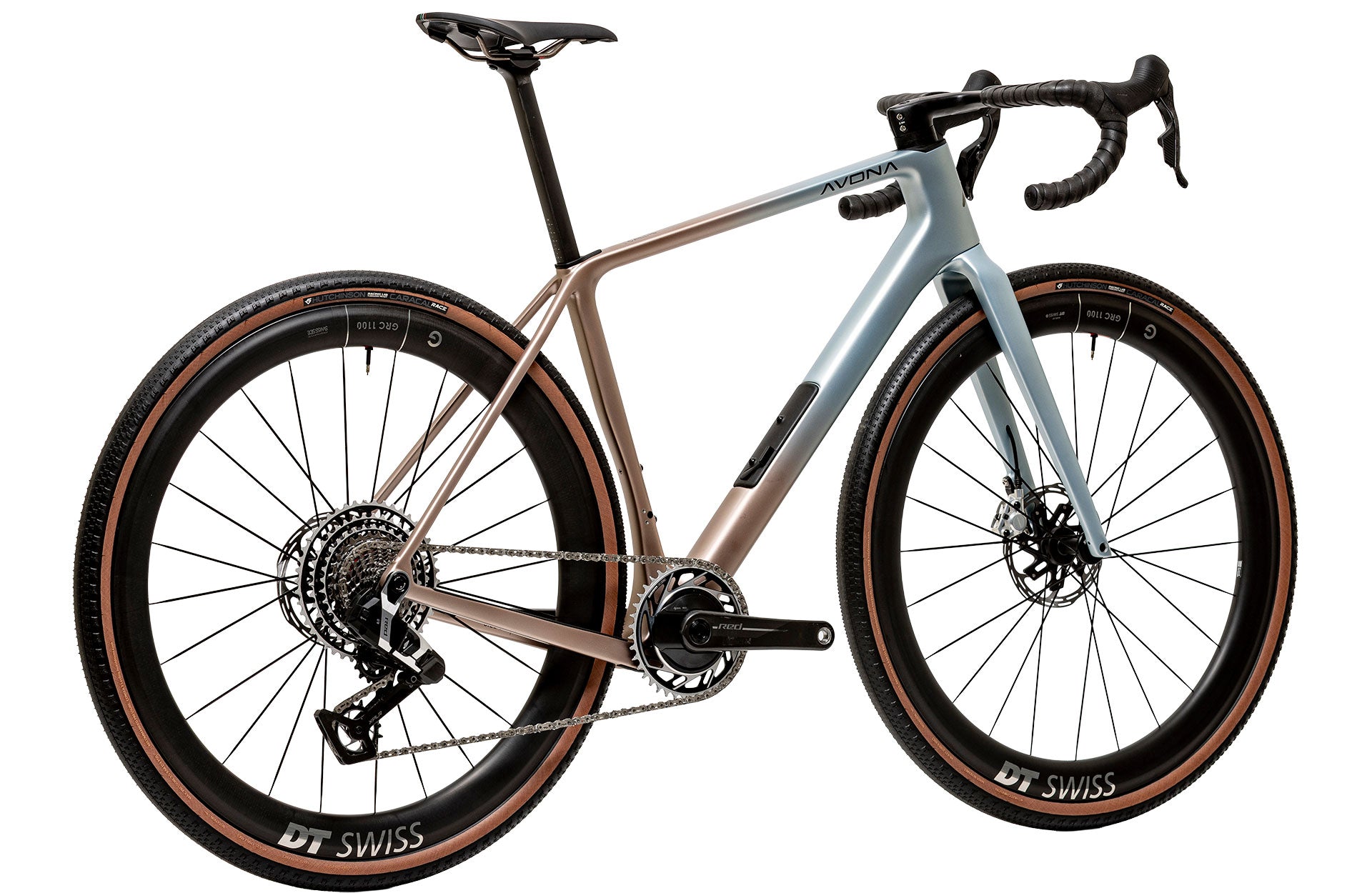

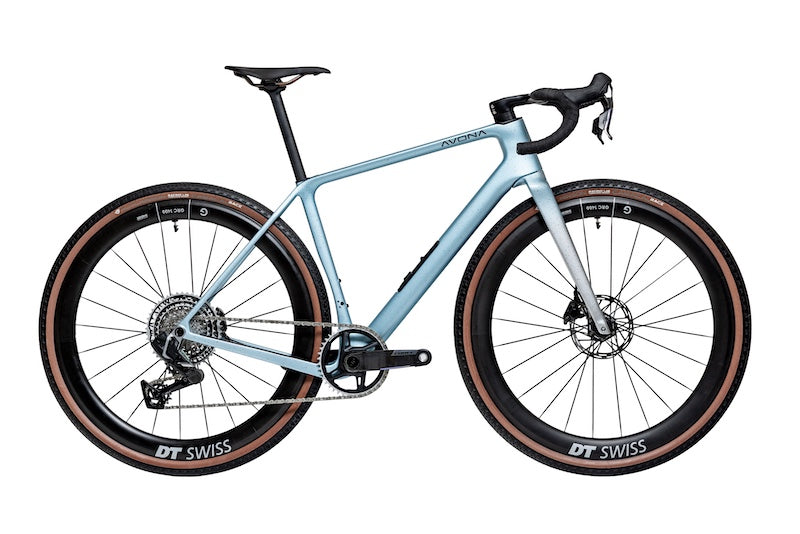

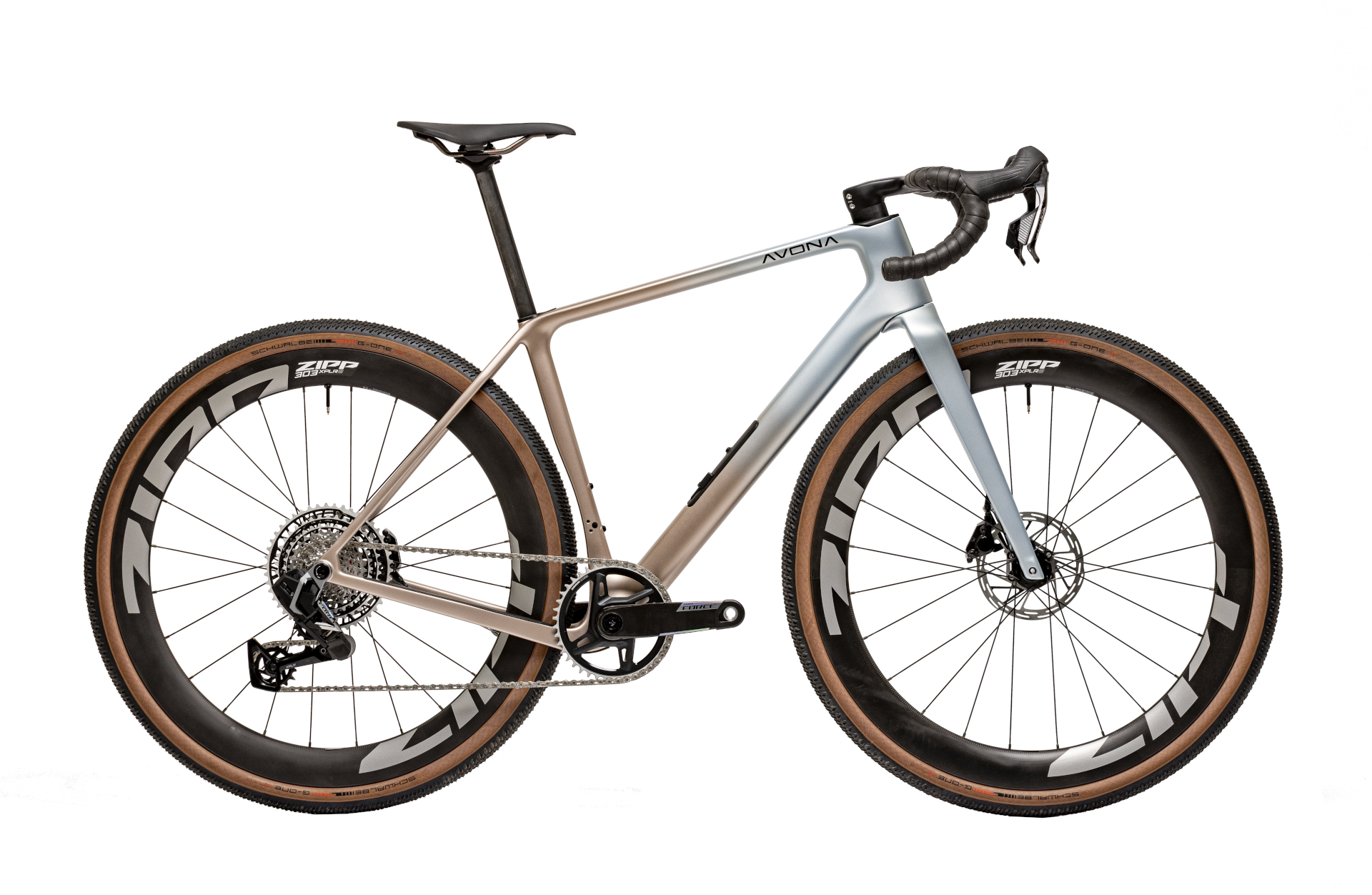

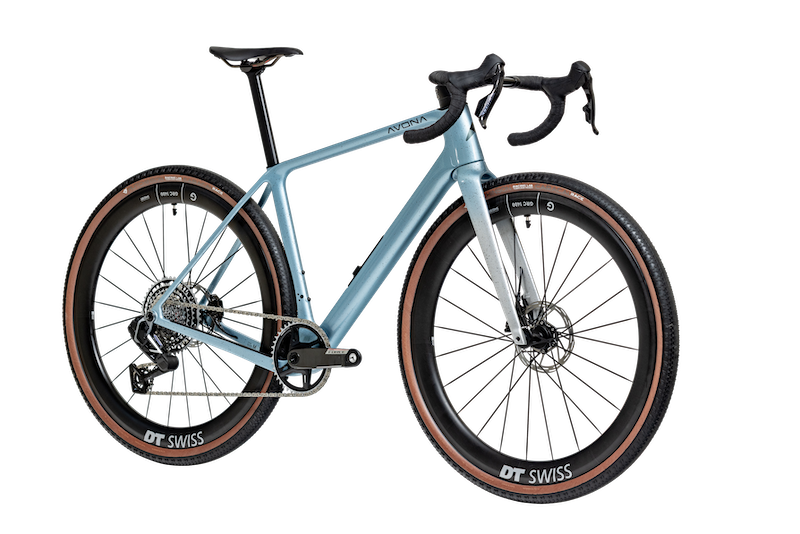

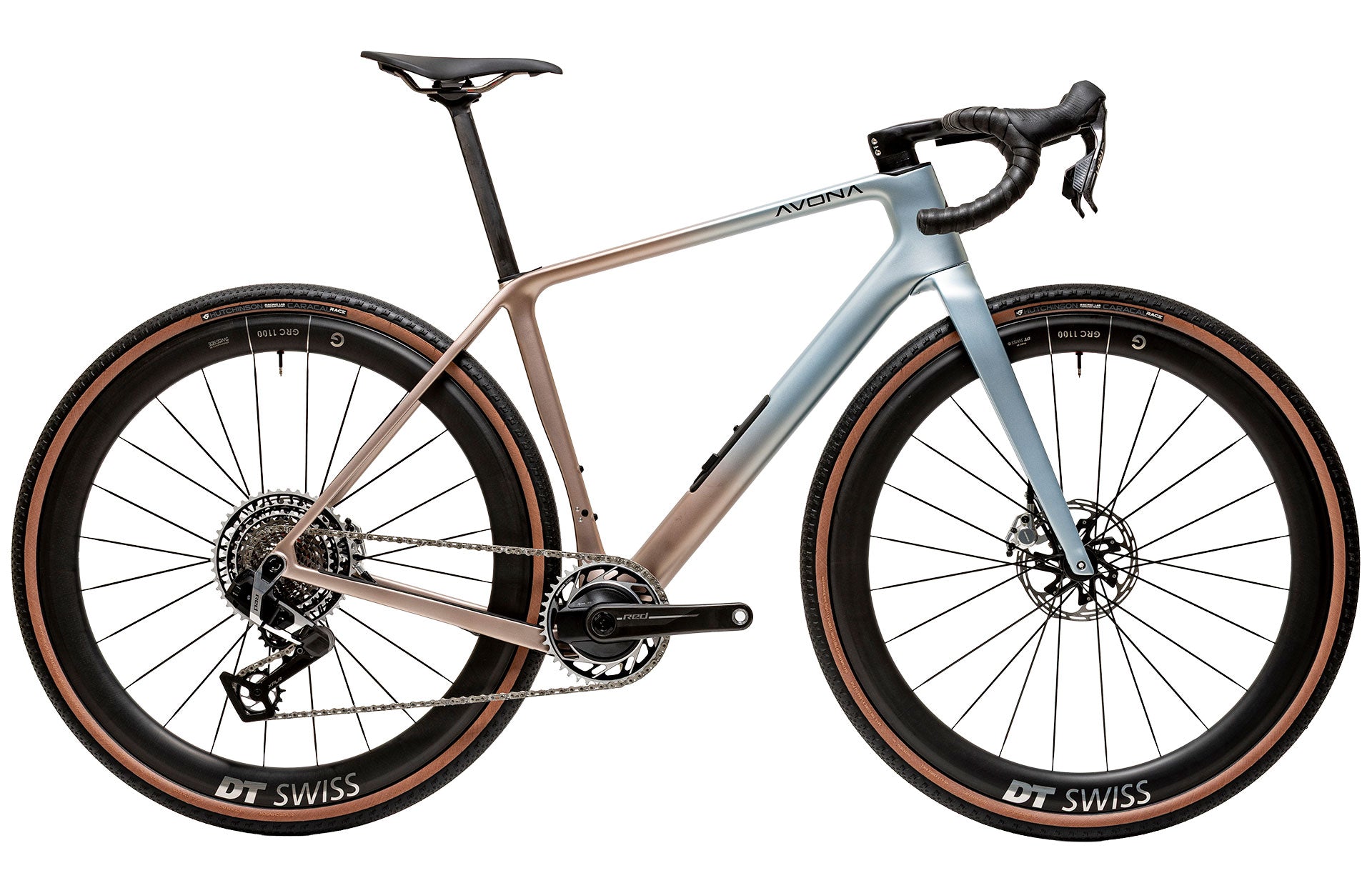

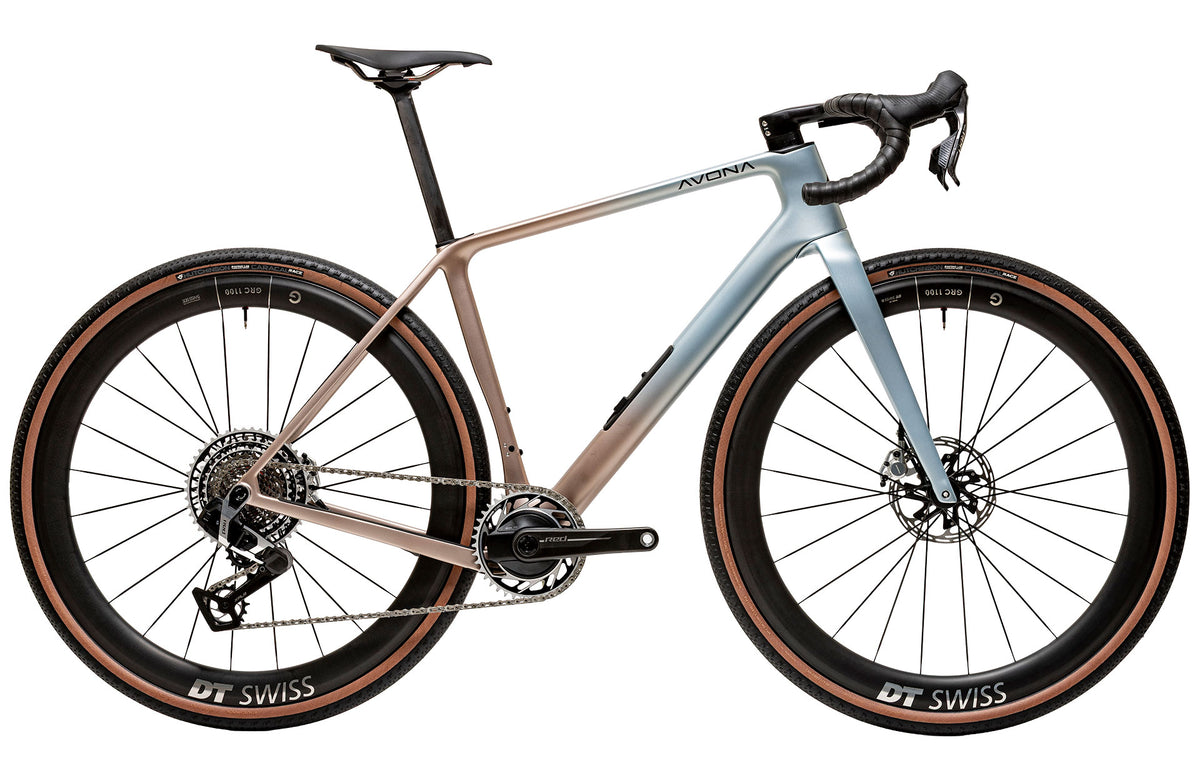

Avona Callis - Frameset

Avona Callis - Frameset

Regular price $5,990.00 AUD
Regular price Sale price $5,990.00 AUD
Sale Sold out
Tax included.

Callis - Gets you there faster

The AVONA Callis is designed to take road bike speed to gravel roads. The feeling of gliding over rough ground at speed is unparalleled. It is aerodynamic yet compliant, with room for fast rolling tires, at a low weight. Because we focused on all aspects of performance, it is a truly versatile bike. Racing, exploring new roads, or even doing double duty as your road bike, this bike can do it all.

Aerodynamics is an even bigger factor on gravel than on tarmac: Riding gravel often means covering a lot of distance, exposed to the wind, alone or in small groups. The less air you are pushing around, the faster and longer you can go. Therefore, a lot of time went into design and CFD studies, making sure we could get drag as low as possible without compromising other performance factors like weight, stiffness or vertical compliance. During the development it became clear that we should focus on the front end of the bike, where you can get the biggest gains, resulting in the characteristic leading-edge extension of the head tube. In the end, a whopping 25 W drag reduction was confirmed in the GST wind tunnel when comparing it to a competitor bike that already had aerodynamic features.

Included:

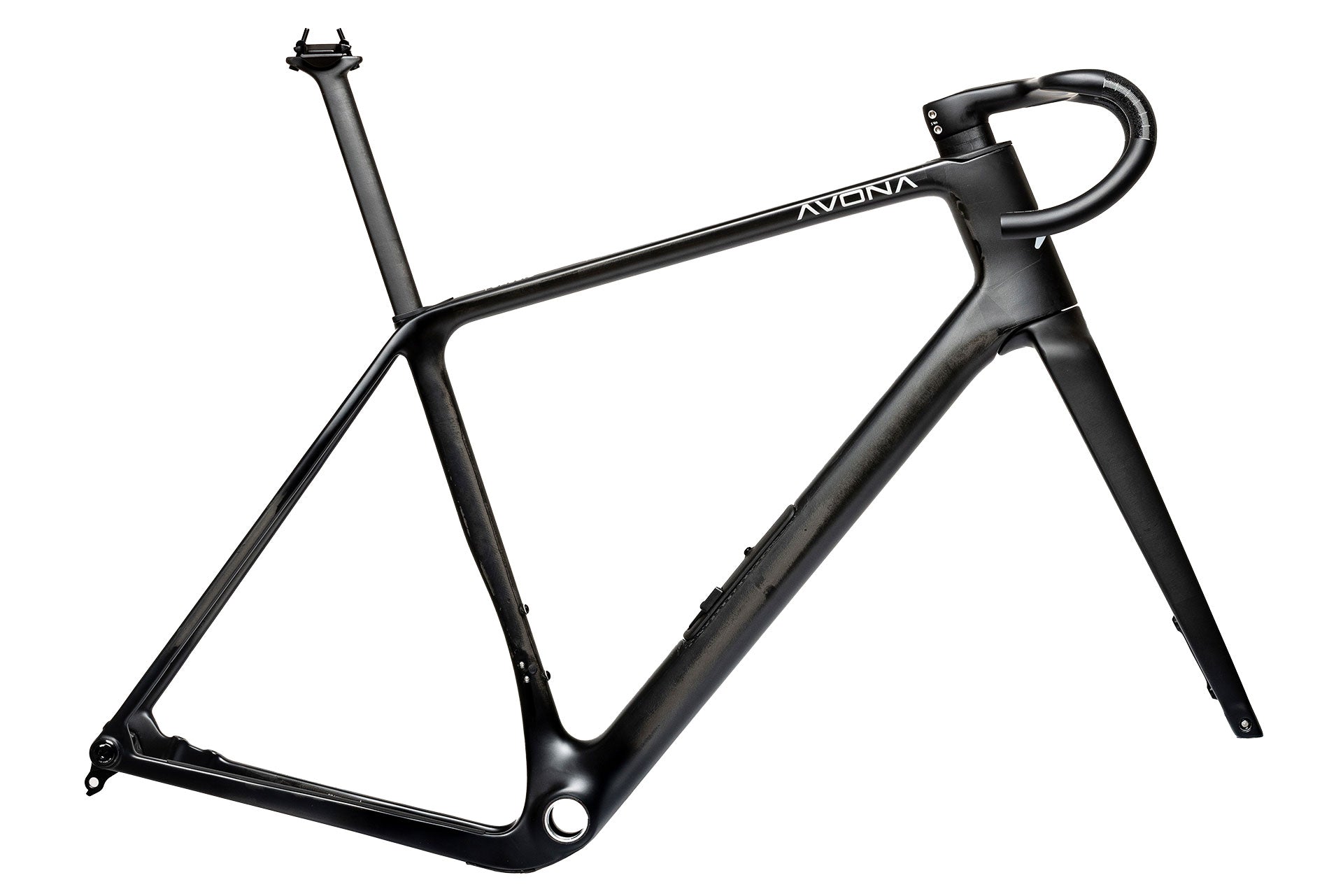

  • Frameset

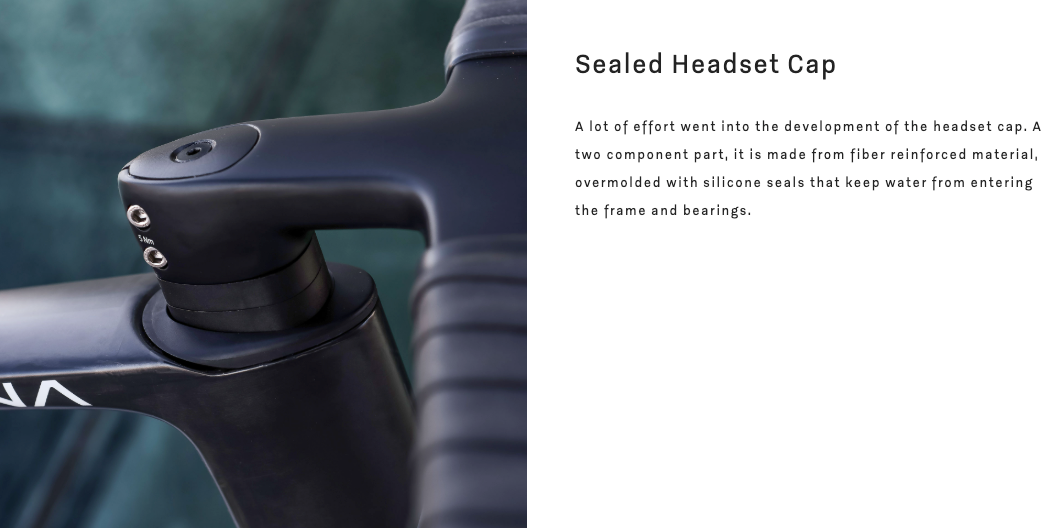

  • Headset
  • Faserwerk Wuthocker Aero Seatpost
  • Faserwerk Luftschneider integrated cockpit - Click Here

The Inside Line:
The one bike that should be in every Bike garage. Built to be fast on gravel, more than able to hold its own the road, comfortable enough to use exploring and on long adventure rides. The Callis is the drop bar bike MTB riders afraid to let themselves want!

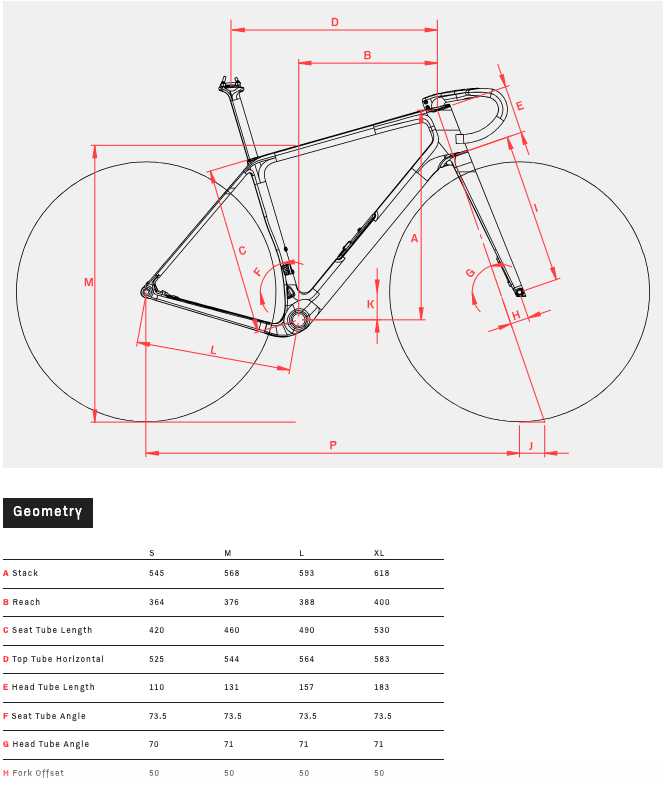

Geometry:

  • See geometry spec sheet in images

Features:

  • Frame Weight: 980g (Medium, clearcoat)
  • Fork Weight: 463g (uncut, clearcoat)
  • Complete bike weight: from 7.78kg (Medium, Sram Red)

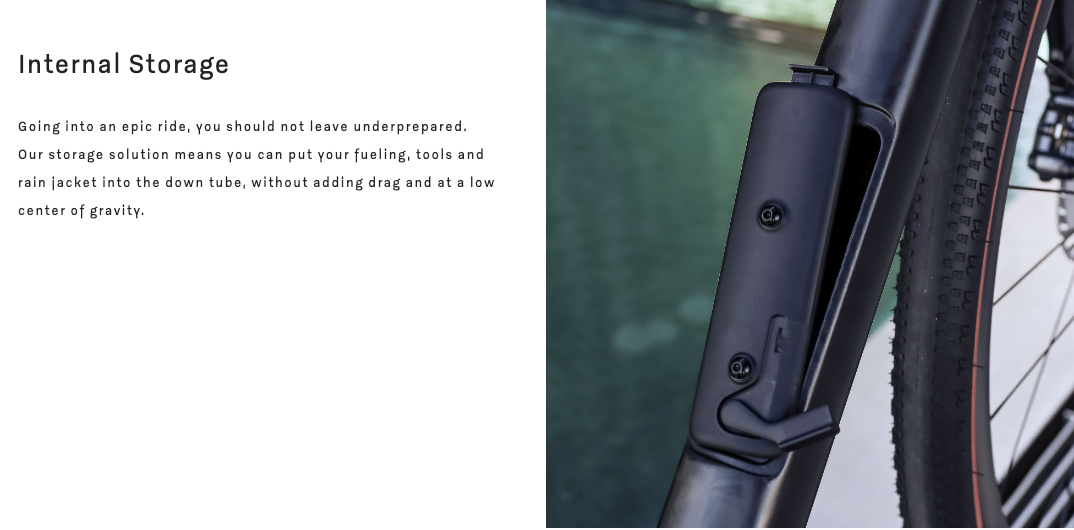

  • Internal frame storage
  • Frame Material: Carbon Fibre
  • Bottle Cage Mounts: 2 (1 seat tube, 1x down tube)
  • Bottom Bracket: BSA  68mm
  • Crankset: 1x max 50t
  • Front Derailleur: removable FD mount
  • Hub acing: 12x142(R), 12x100(F)
  • Brakes - Flat Mount 160mm (clearance for 180mm)
  • Cable routing: Internal (compatible: mechanical, Di2, AXS)
  • Fender Mounts: Front& Rear

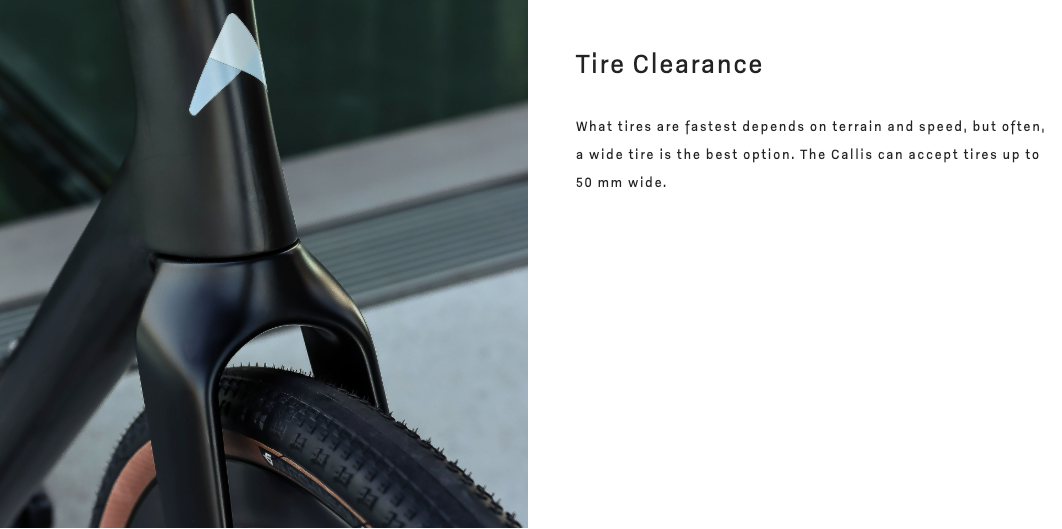

  • Tyre Clearance: 50mm (2x drivetrain will reduce rear tyre clearance)
  • System weight: Max 110kg

Downloads:

Want to know about the frameset or help with a complete bike build? reach out to our team who are ready to assist.
