Cane Creek DB IL G2 Rear Shock (Air & Coil)

Big-bike damping for short-travel bikes

The Cane Creek DB IL shocks give lightweight, efficient short-travel bikes more downhill capability and far more tuning range than a stock compact shock.

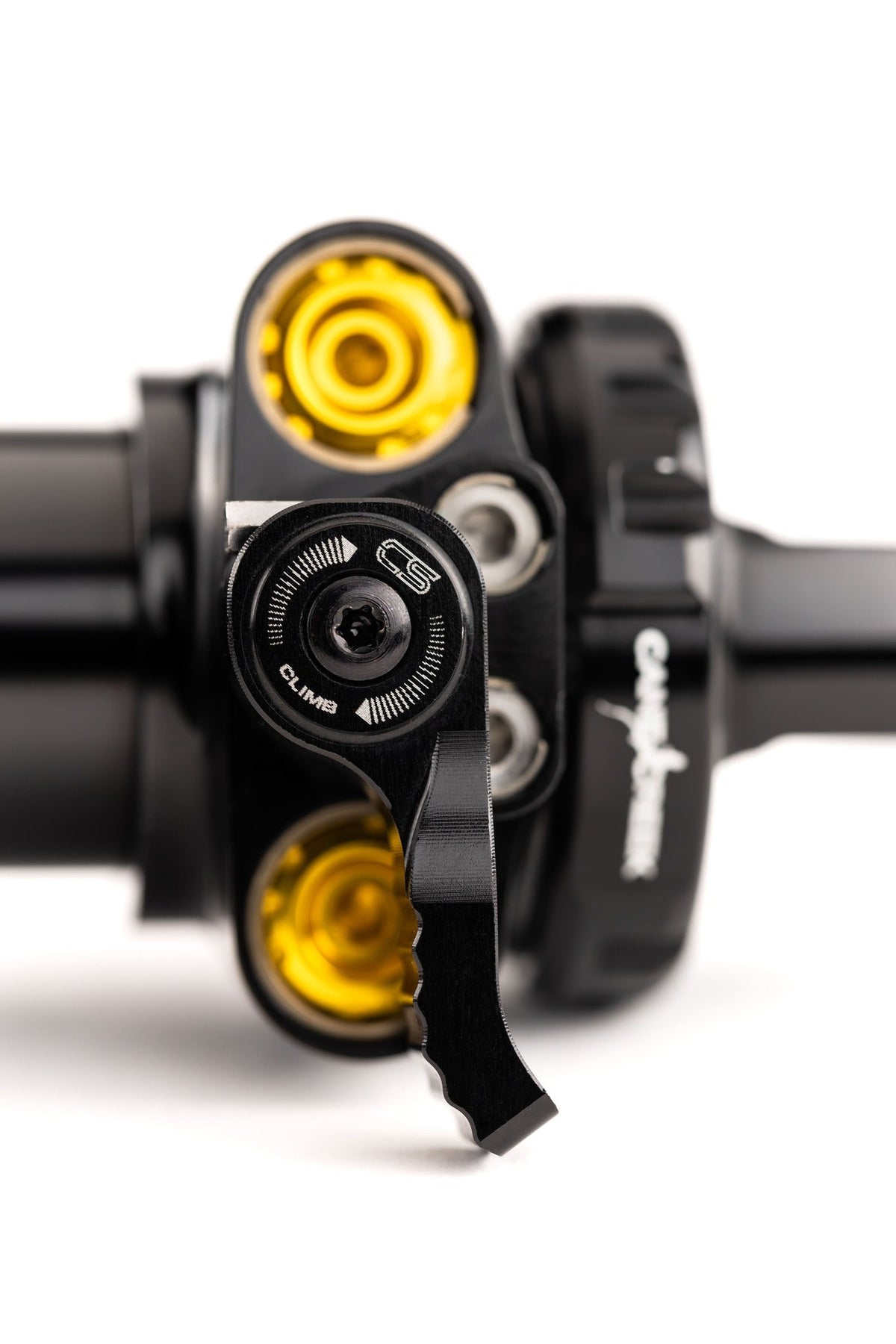

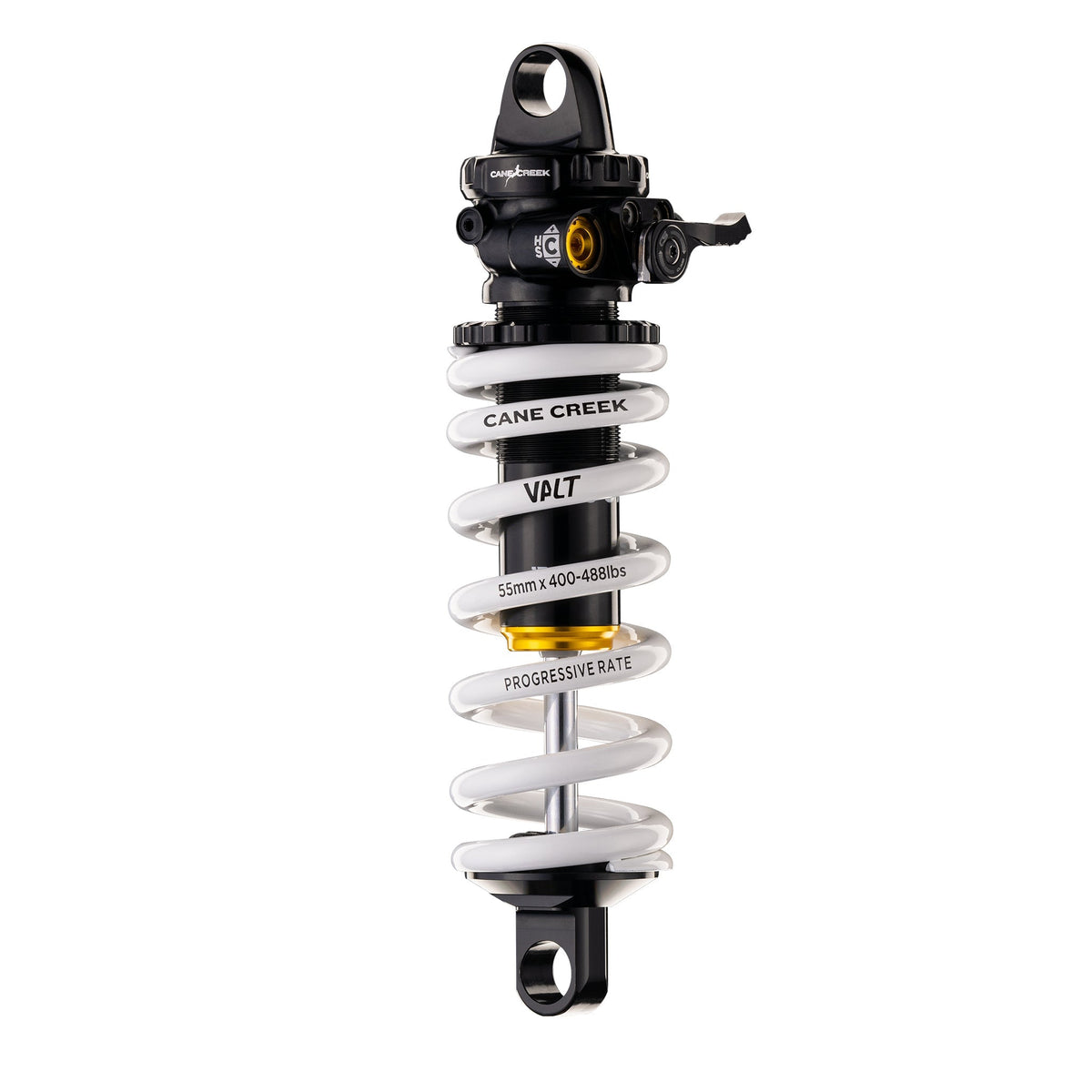

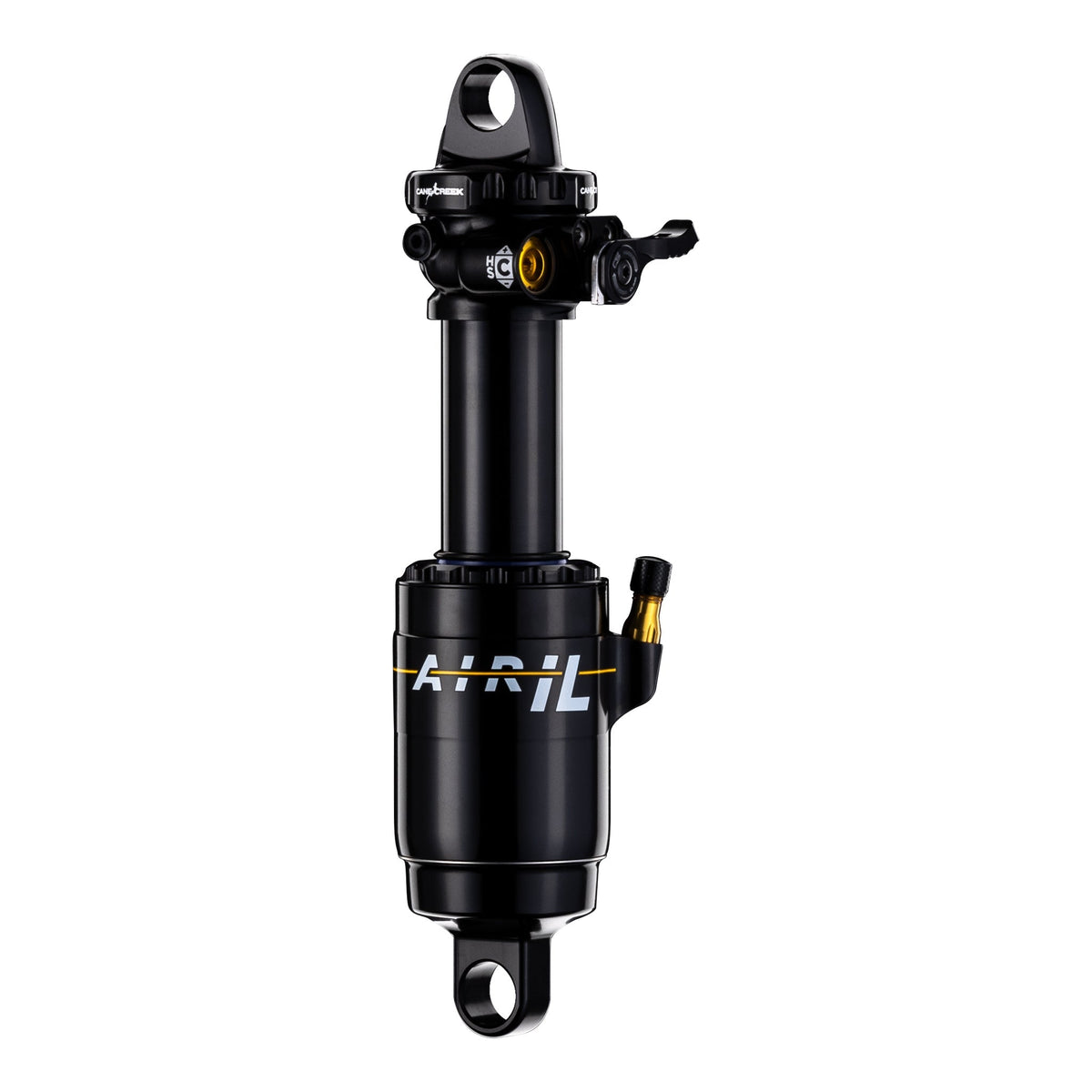

Air IL is Cane Creek's lightest shock, for bikes with 100-140mm rear travel and riders who value climbing as much as descending. Coil IL is the most compact, lightweight fully adjustable coil shock, for 120-140mm bikes, with a progressive spring that mimics the end-stroke support of air.

The Inside Line:
Run out of adjustment on your stock shock? This is the upgrade that helps a light trail bike punch well above its travel.

Features:

Air IL: lightest Cane Creek shock, 100-140mm travel bikes
Coil IL: compact fully adjustable coil, 120-140mm travel bikes
Better damping and smoother performance than typical compact inline shocks

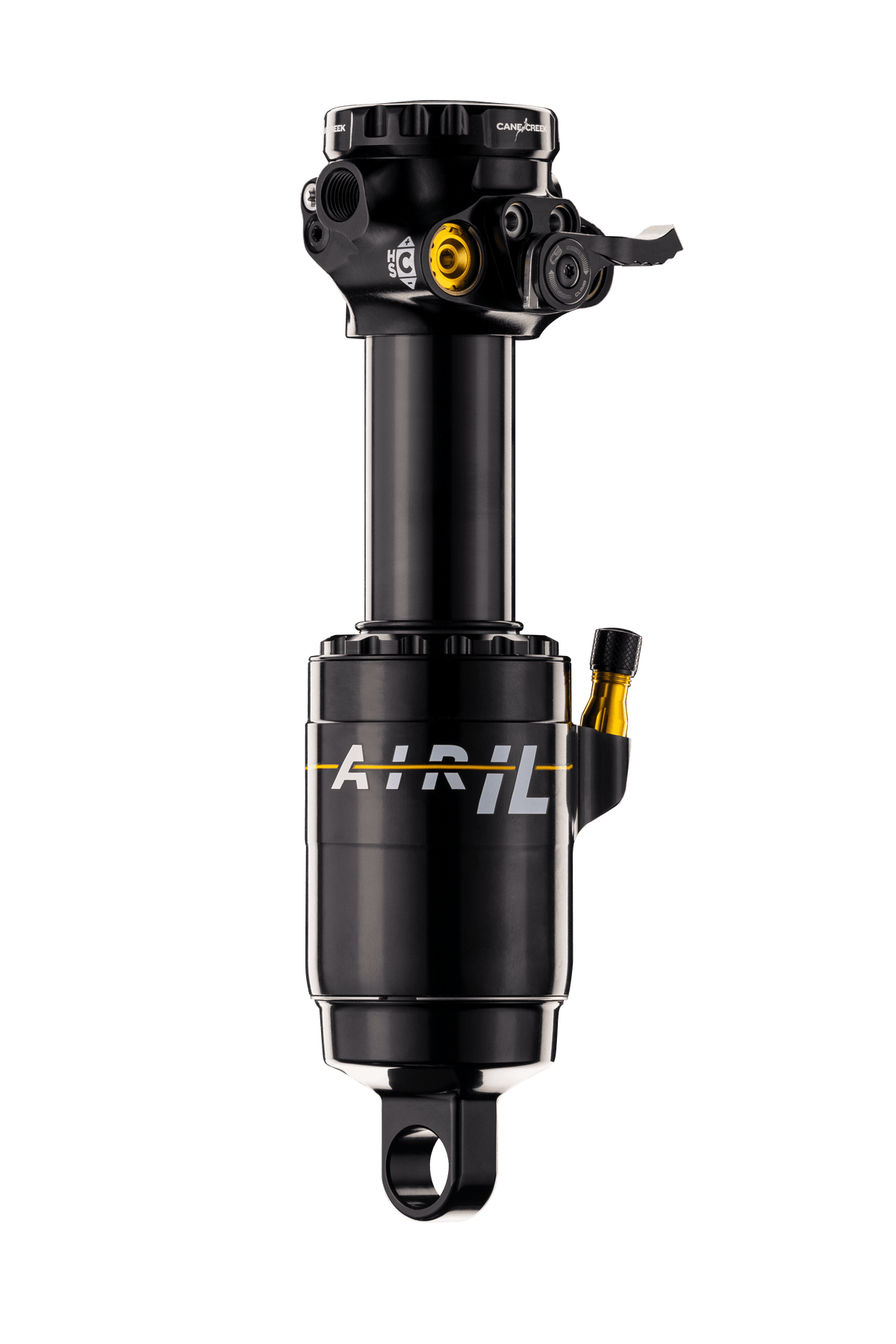

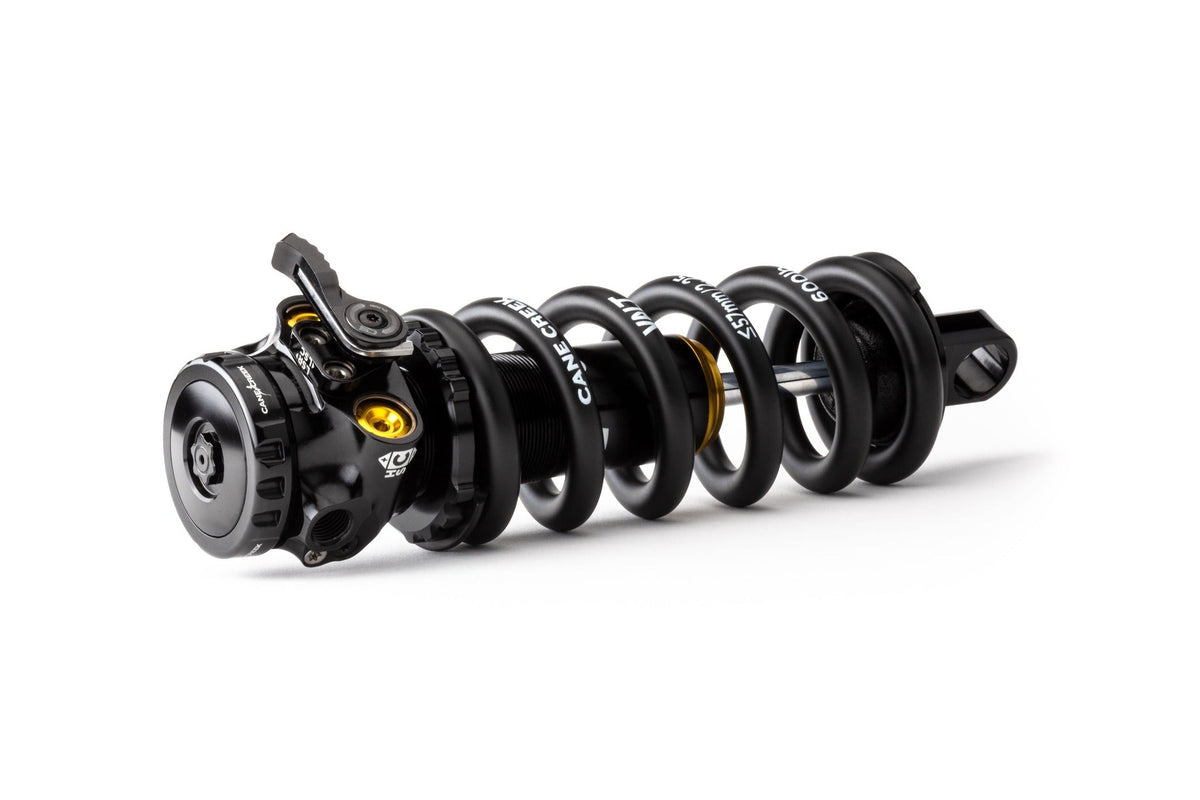

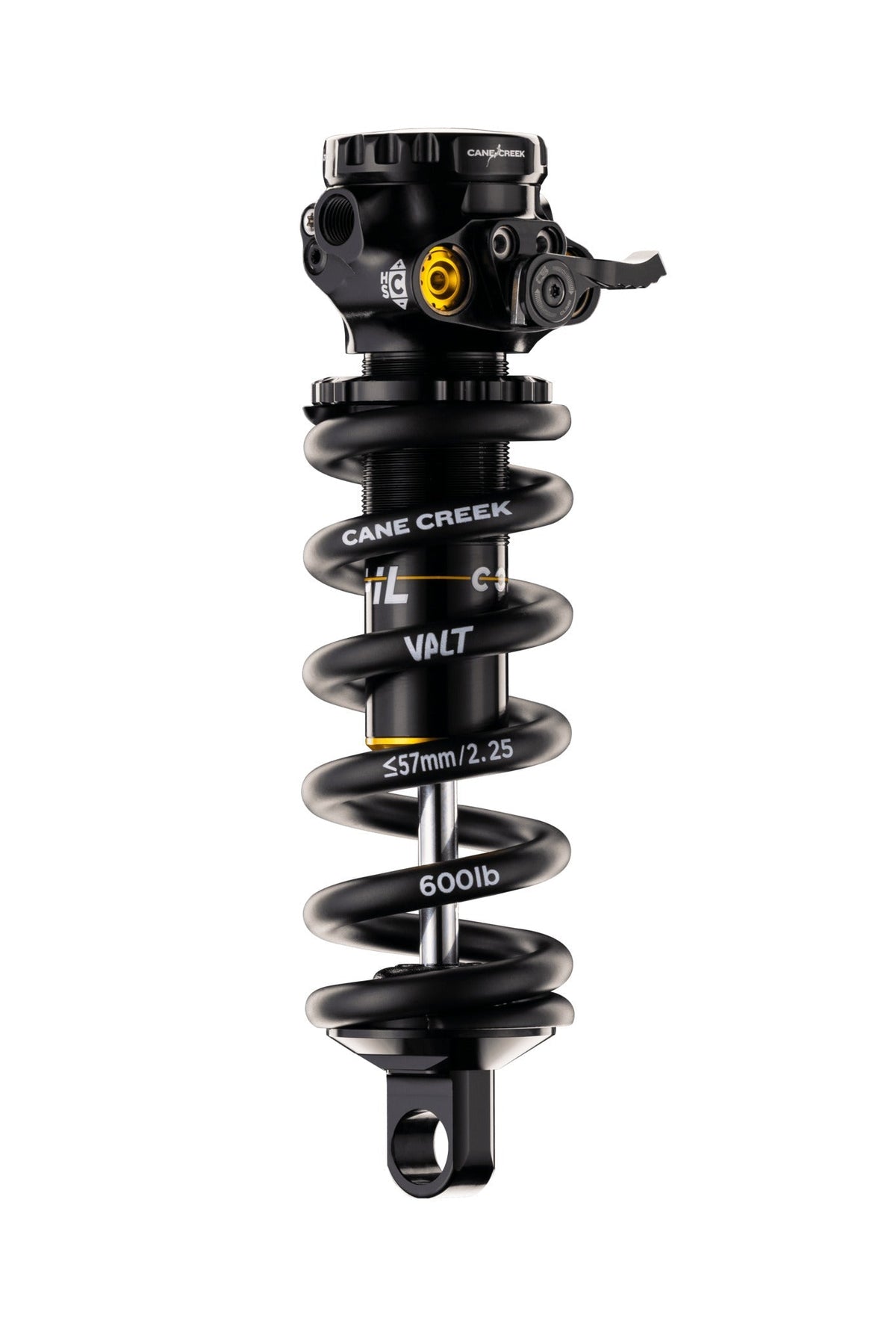

Standard and Trunnion mounts

Notes:

Shocks are ordered in to your size.
Mounting hardware is frame specific - see Cane Creek rear shock hardware.
Coil IL is not recommended for clevis-style suspension designs - ask us to check your frame.

How to choose your shock size:

Shocks are sized by eye-to-eye length x stroke in mm (e.g. 210 x 55), and by mount type: Standard (eyelet at both ends) or Trunnion (the shock body bolts into the frame).
Your bike brand lists the size in the frame specs, or it's printed on your current shock. Use the shock guide in the image gallery.
Not sure? Send us your bike's make, model and year and we'll confirm the size, hardware and (for coil shocks) the spring rate.

Matching parts:

Coil springs: VALT springs. Hardware: rear shock hardware. Stroke reducers and spares: rear shock parts.
