MRP Ramp Control Cartridge - Fox Forks

Name: MRP Ramp Control Cartridge - Fox Forks
Brand: Link Sports
SKU: MRP-702430172806
Price: 290.0 AUD
Availability: InStock

$290.00 AUD

Sale Sold out

Tax included.

Product variants

Quantity

Upgrade your Fox Forks with the MRP Ramp Control Cartridge. This easy-to-install air spring upgrade allows for on-the-fly adjustments and provides improved performance. With Ramp Control technology, you no longer need to use volume spacers to tune your air spring, making it the best alternative for optimal performance.

The Inside Line:
MRP Ramp control cartridges provide the ability to adjust volume spacers on trail instead of waiting to finish your ride.

Features:

Replaces factory air fill valve and volume spacers
16-position knob to control end-stroke progression (ramp)
Speed-sensitive

MORE CONVENIENT

Tokens and volume spacers aren’t friendly to on-trail experimentation and tuning. Ramp Control provides precise control over air spring support via a 16-position knob with crisp, clear detents. In seconds, you can perfectly dial-in your fork for ANY trail , on-the-fly.

PERFECT PERFORMANCE

Progressive, volume-reduced air springs can worsen ride quality and buck you off line in slow, technical riding. A benefit of its speed-sensitive nature, Ramp Control gives you additional spring support only when you’d WANT it.

STRAIGHTFORWARD

Volume-tuning requires changes to air-pressure and damper settings, meaning one change necessitates several others. Ramp Control unlocks exacting control of spring support independent of these other settings.

A BETTER WAY TO TUNE

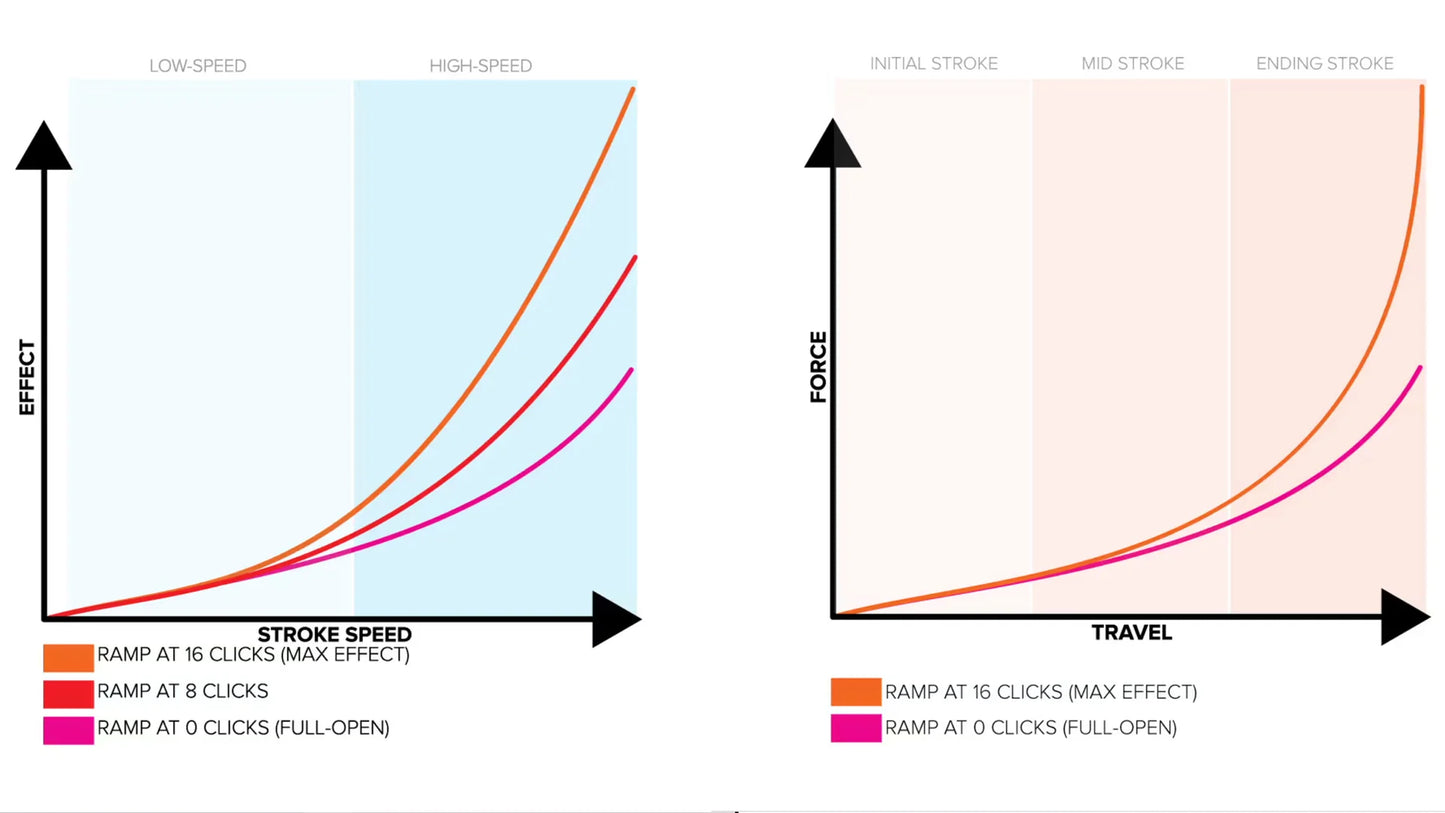

Volume adjustment spacers change the shape of the air-spring’s curve throughout the entire travel range, regardless of velocity. Aside from the slight change resulting from the volume of the cartridge itself, the Ramp Control upgrade affects only the ending stroke spring curve - as its damping effect is velocity-dependent. This portion of the curve represents intense, sharp hits and big events, like landing a sizable drop or plowing through a rock garden. Without Ramp Control, your fork’s behavior in these circumstances has been compromised by your desired feel elsewhere in the stroke. With Ramp Control, you can tune the general feel of your fork through its air-pressure and damper settings, and isolate big-hit performance and bottom-out with the Ramp Control adjustment.

Compatibility:

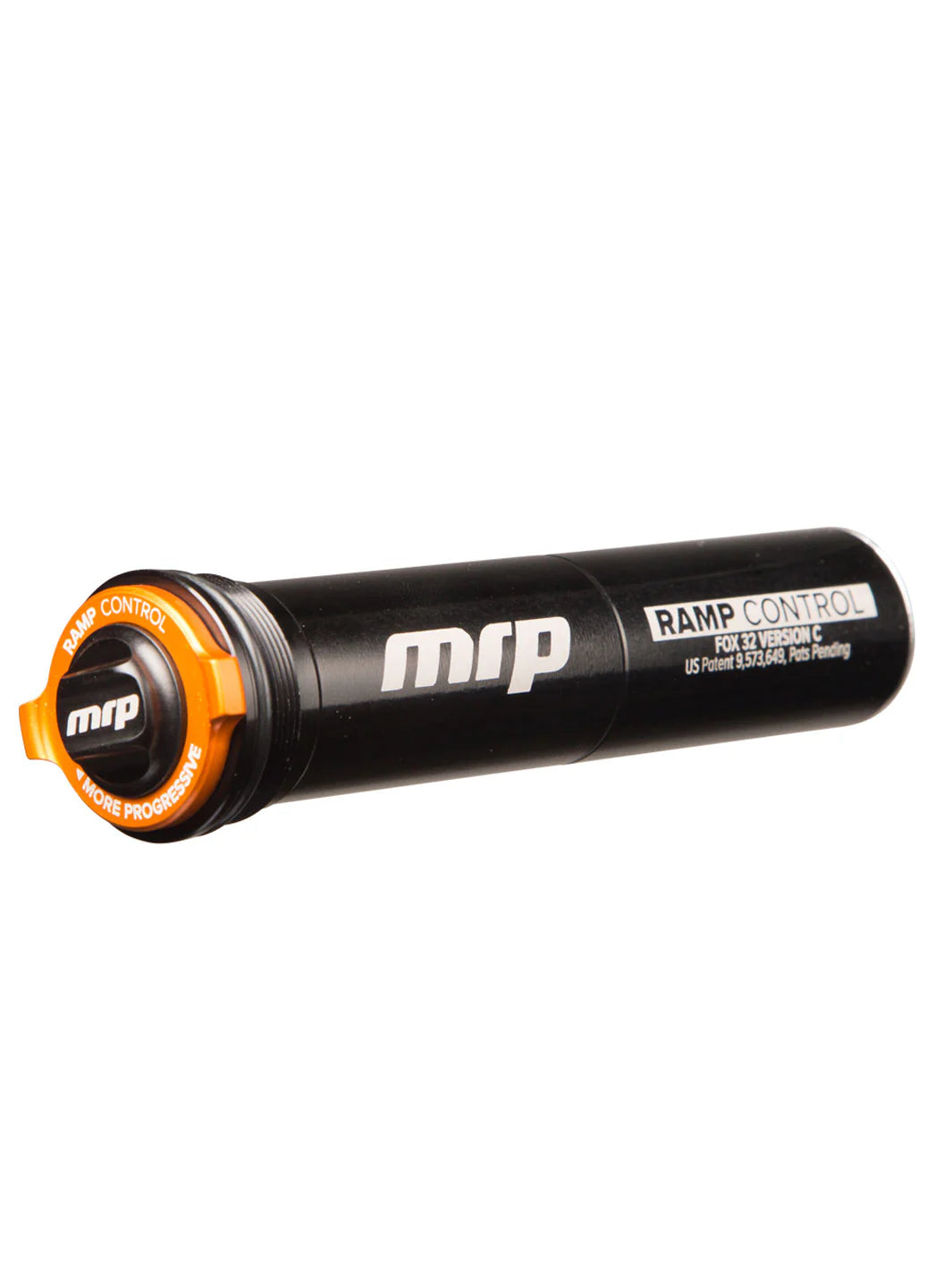

Fox 32 - Model C

2016 and newer Fox 32 Float forks with the FIT 4 and Grip dampers. Recommended for 100-130mm 26”, 27.5” and 29" forks.
Not recommended for 80-90mm forks
Not compatible with 140-150mm forks
Not compatible with Fox 32mm Step Cast forks

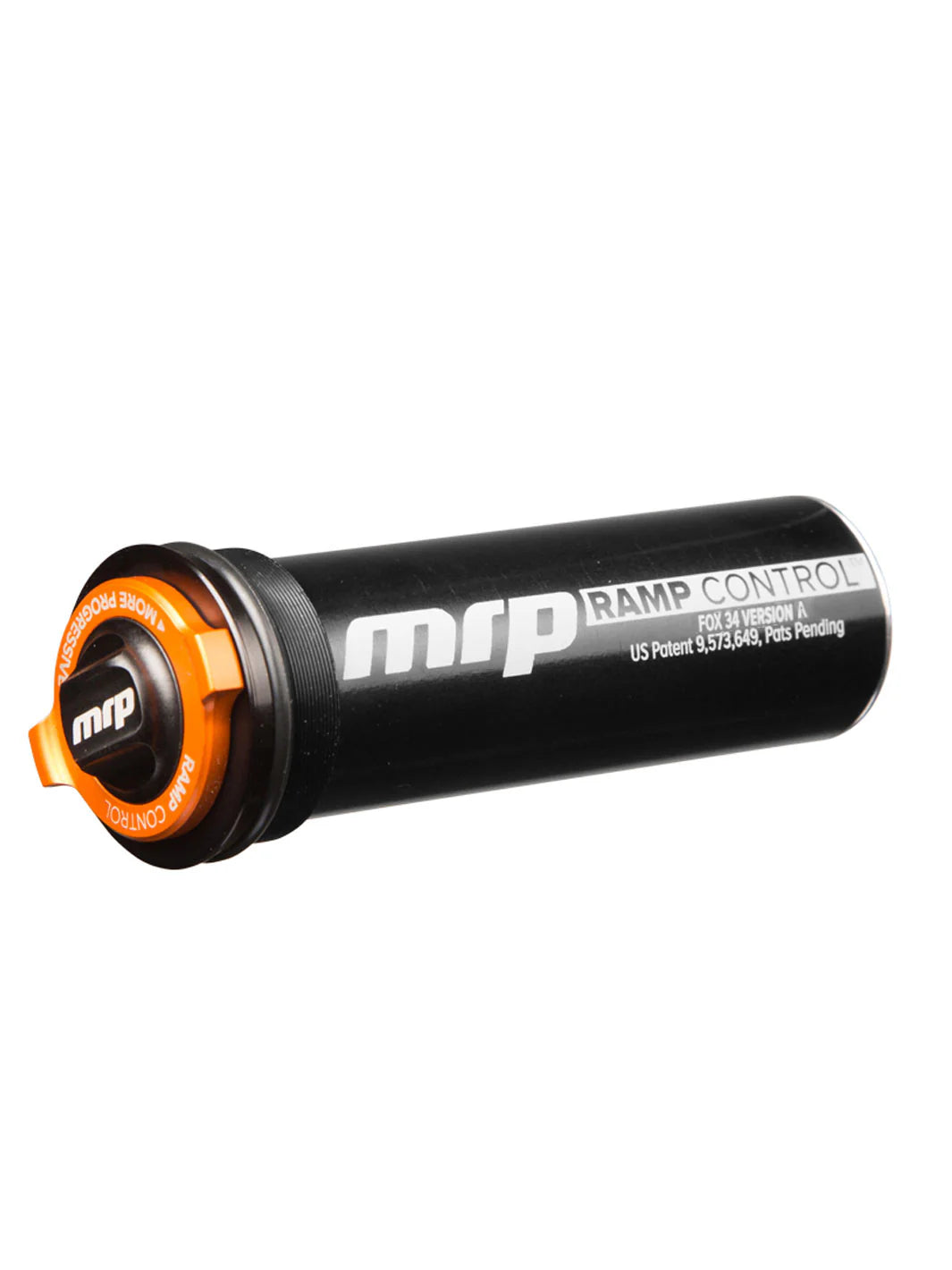

Fox 34 - Model A

2016 - 2021 Fox 34 Float forks. Recommended for 140-160mm 29”, 27.5+, and 27.5” forks.
2020 Marzocchi Z2.Recommended for 140-160mm 29”, 27.5+, and 27.5” forks.
2022 Fox 34 Float forks. Recommended for 130-140mm 29” forks.
2019 and newer Fox 34 Step Cast Float forks. Recommended for 110-120mm 29” forks.
Cartridges are incompatible with TALAS forks.

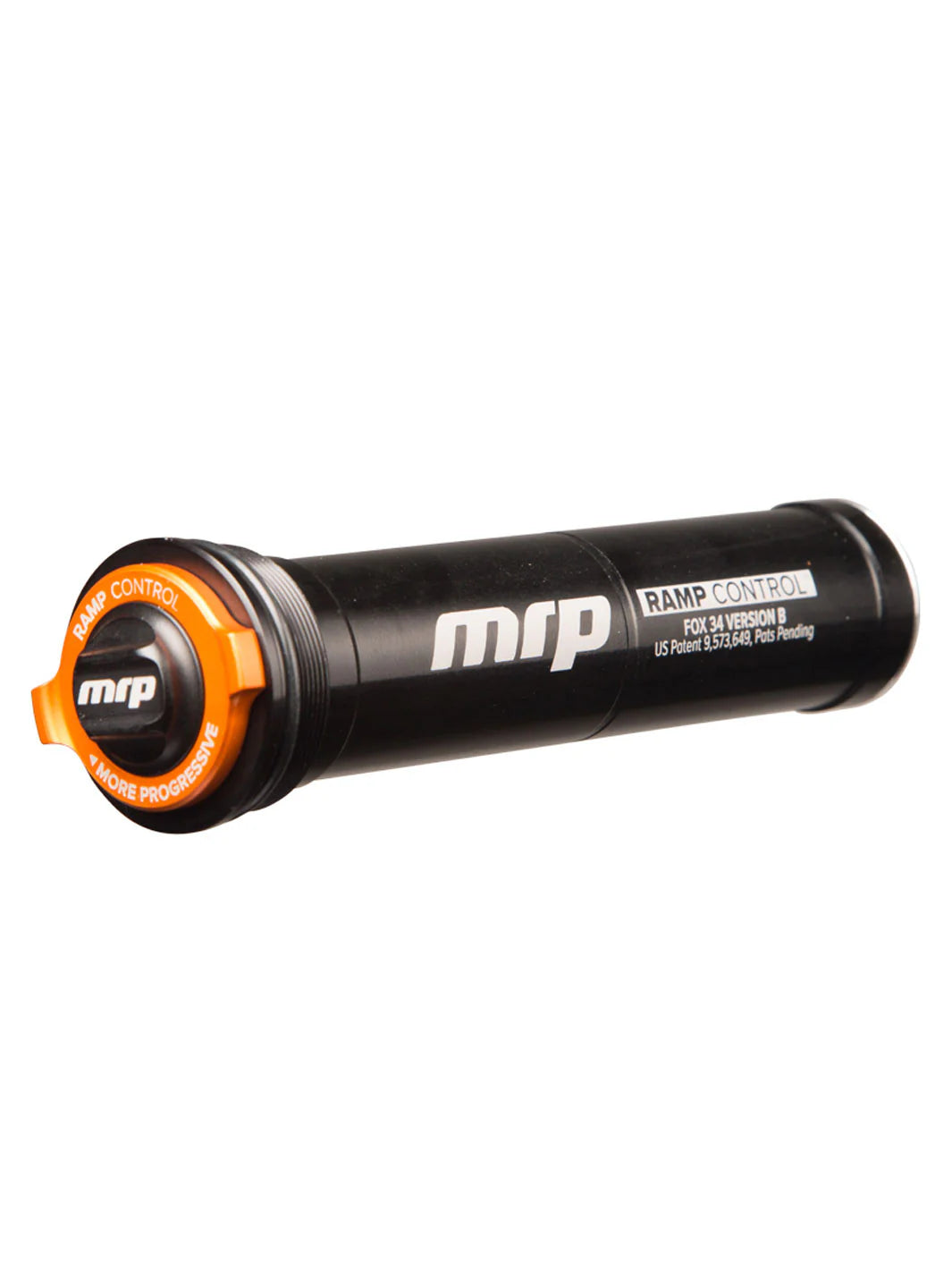

Fox 34 - Model B (long-body)

2016 - 2021 Fox 34 Float forks.Recommended for 110-130mm 29”, 27.5+,and 27.5”forks.NOT FOR FOX STEPCAST MODELS.

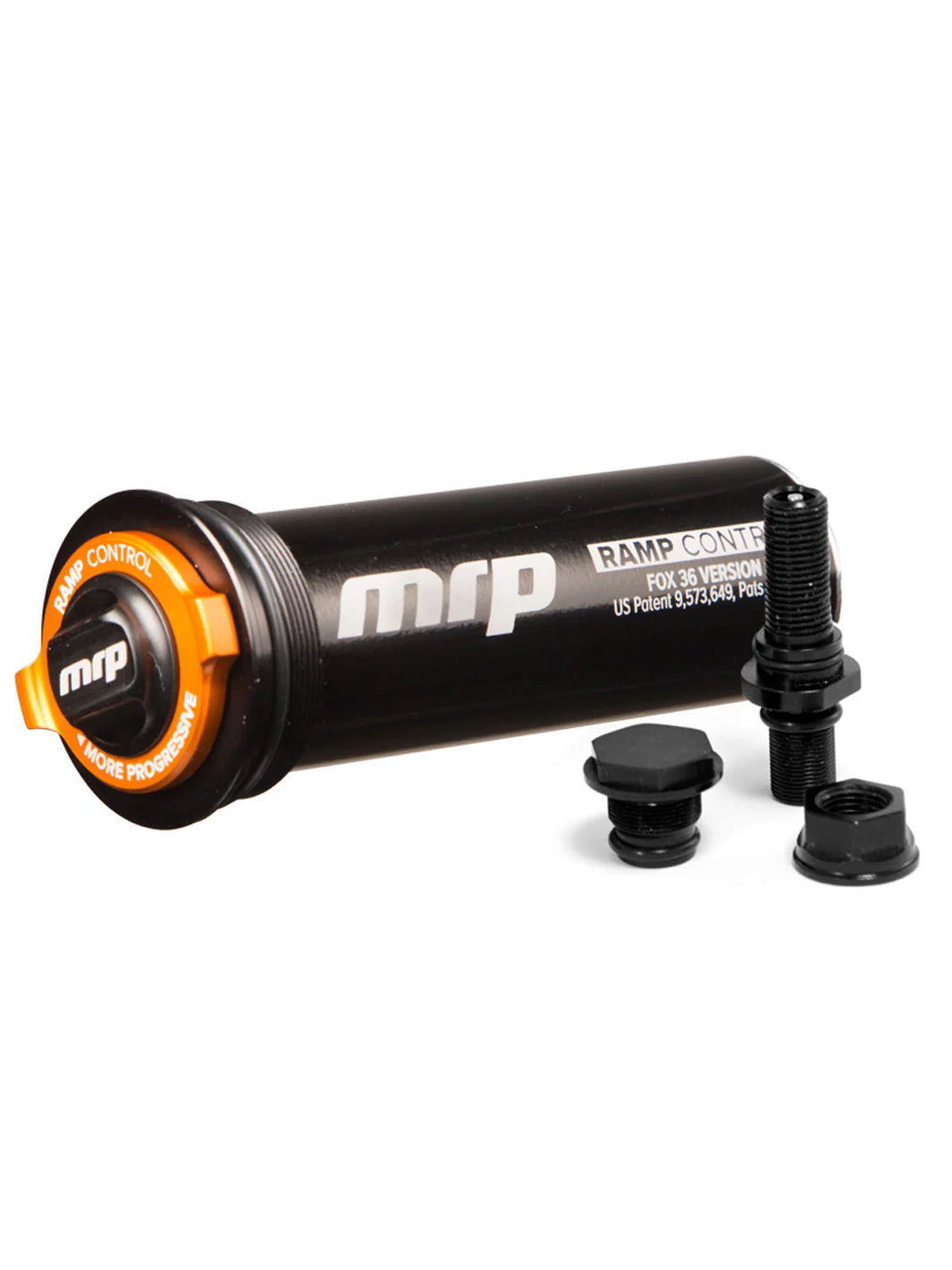

Fox 36 - Model D

2015-2017 Fox 36 forks

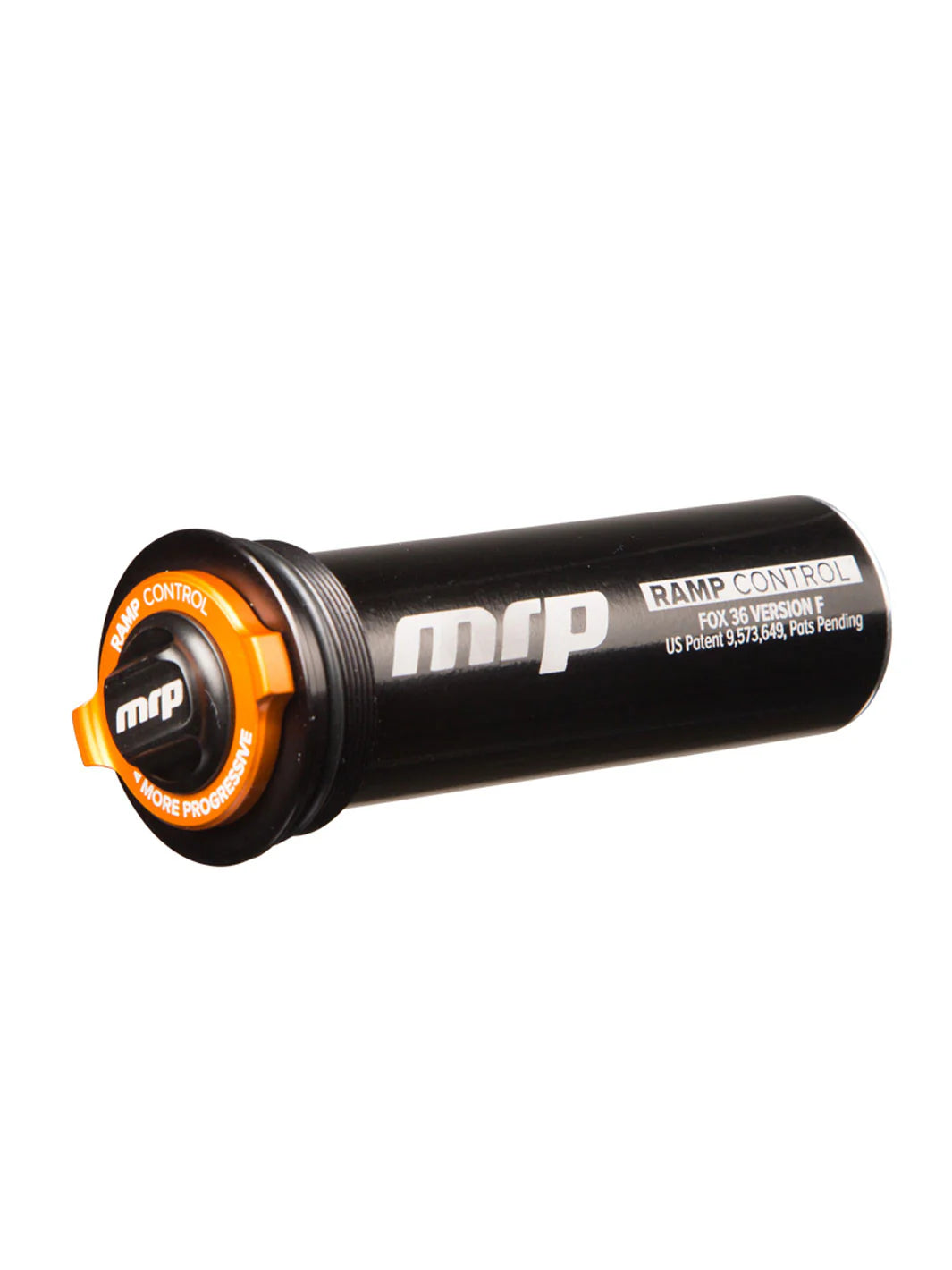

Fox 36 - Model F

2018-2023 Fox 36 Float forks. Recommended for 140-180mm 29”, 27.5+, and 27.5” forks
2019-2023 Marzocchi Z1 (air only), all travel options
Version F is a cartridge-only kit suitable for Fox 36 forks of all travel and wheelsize options. A revised air-spring design in the 2018 and later Fox 36 makes the Fulfill™ spring conversion included in Ramp Control Upgrade Version D incompatible.

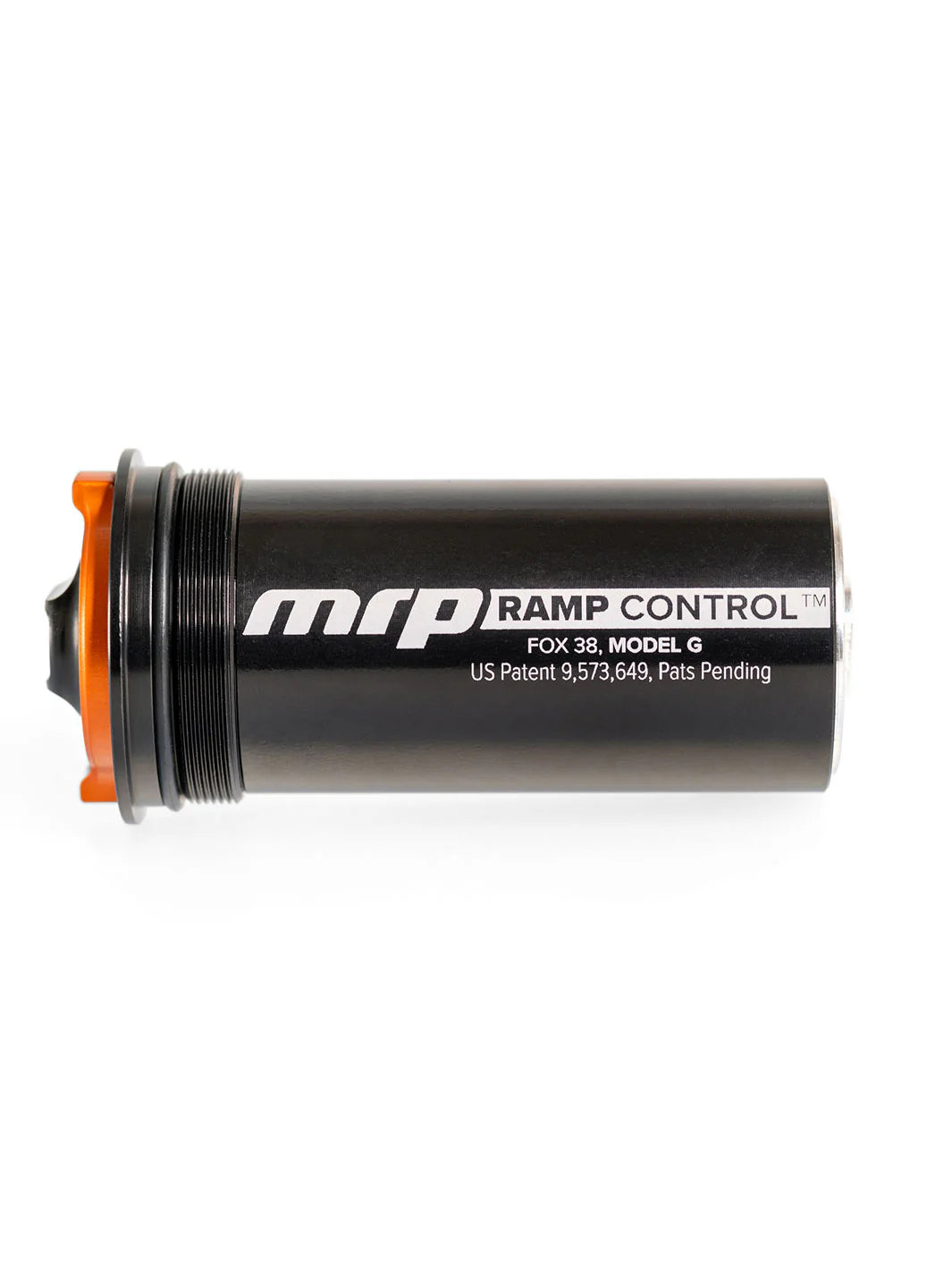

Fox 38 - Model G
