MRP Ramp Control Cartridge - PRO

MRP Ramp Control Cartridge - PRO

$340.00 AUD
$340.00 AUD
Sale Sold out
Tax included.

The Ramp Control PRO upgrade cartridges pair MRP’s acclaimed Ramp Control technology with traditional air-spring volume adjustment. Ramp Control PRO cartridges feature a threaded bottom which interfaces with MRP’s Huck Puck volume spacers - also found in the Bartlett, Raven, and Ribbon SL forks. Air volume tuning allows you to dictate the baseline air-spring curve and Ramp Control provides a powerful way to control high-speed and ending-stroke performance. Together, it’s a robust package that puts you in precise control of your air-spring performance quickly and easily.

The Inside Line:
MRP Ramp control cartridges provide the ability to adjust volume spacers on trail instead of waiting to finish your ride.

Features:

  • Replaces factory air fill valve and volume spacers
  • 16-position knob to control end-stroke progression (ramp)
  • “Pro” model adds ability to change spring volume with Huck Pucks
  • Speed-sensitive

MORE CONVENIENT

Tokens and volume spacers aren’t friendly to on-trail experimentation and tuning. Ramp Control provides precise control over air spring support via a 16-position knob with crisp, clear detents. In seconds, you can perfectly dial-in your fork for ANY trail , on-the-fly.

PERFECT PERFORMANCE

Progressive, volume-reduced air springs can worsen ride quality and buck you off line in slow, technical riding. A benefit of its speed-sensitive nature, Ramp Control gives you additional spring support only when you’d WANT it.

STRAIGHTFORWARD

Volume-tuning requires changes to air-pressure and damper settings, meaning one change necessitates several others. Ramp Control unlocks exacting control of spring support independent of these other settings.

A BETTER WAY TO TUNE

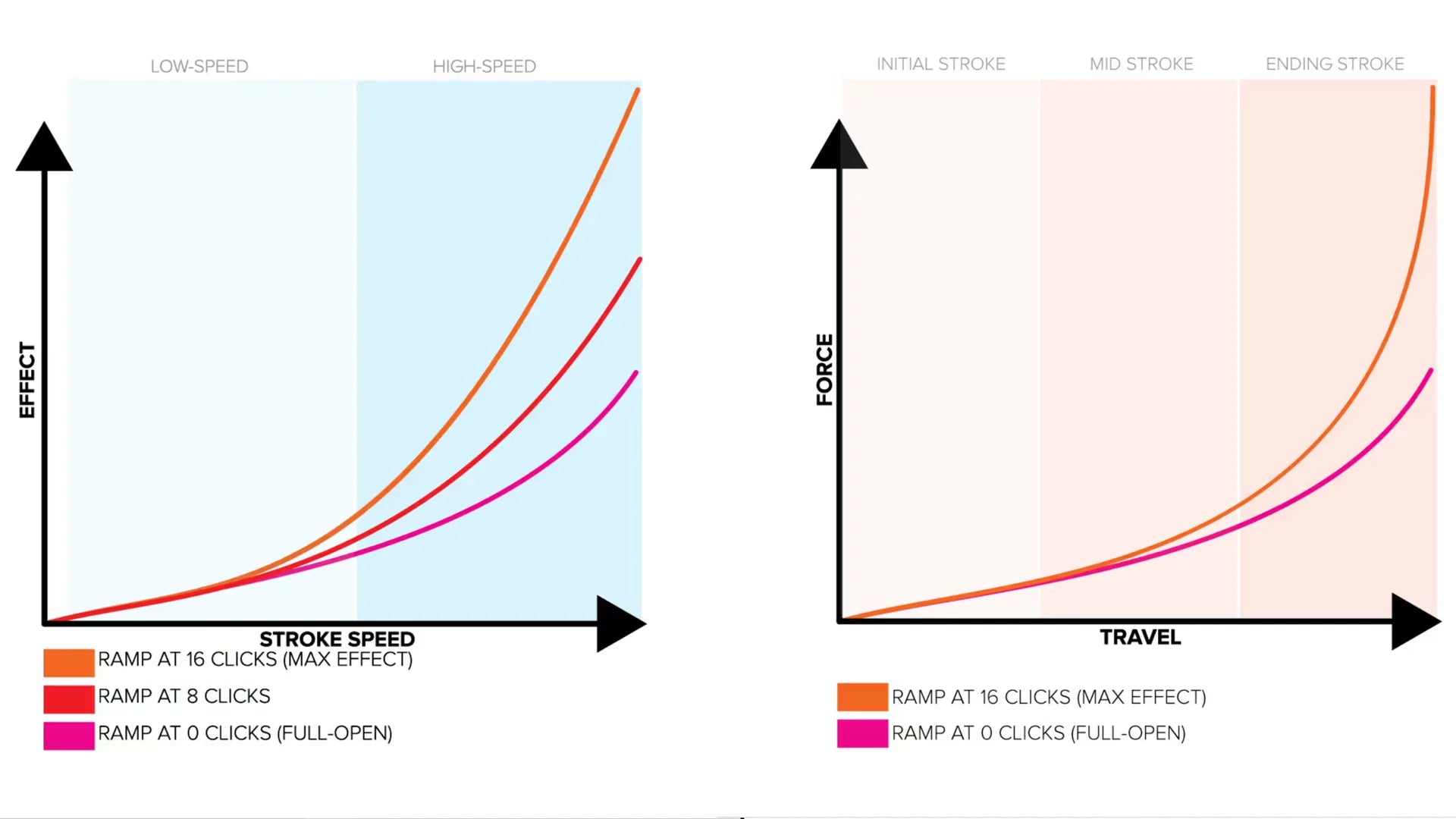

Volume adjustment spacers change the shape of the air-spring’s curve throughout the entire travel range, regardless of velocity. Aside from the slight change resulting from the volume of the cartridge itself, the Ramp Control upgrade affects only the ending stroke spring curve - as its damping effect is velocity-dependent. This portion of the curve represents intense, sharp hits and big events, like landing a sizable drop or plowing through a rock garden. Without Ramp Control, your fork’s behavior in these circumstances has been compromised by your desired feel elsewhere in the stroke. With Ramp Control, you can tune the general feel of your fork through its air-pressure and damper settings, and isolate big-hit performance and bottom-out with the Ramp Control adjustment.



Compatibility:

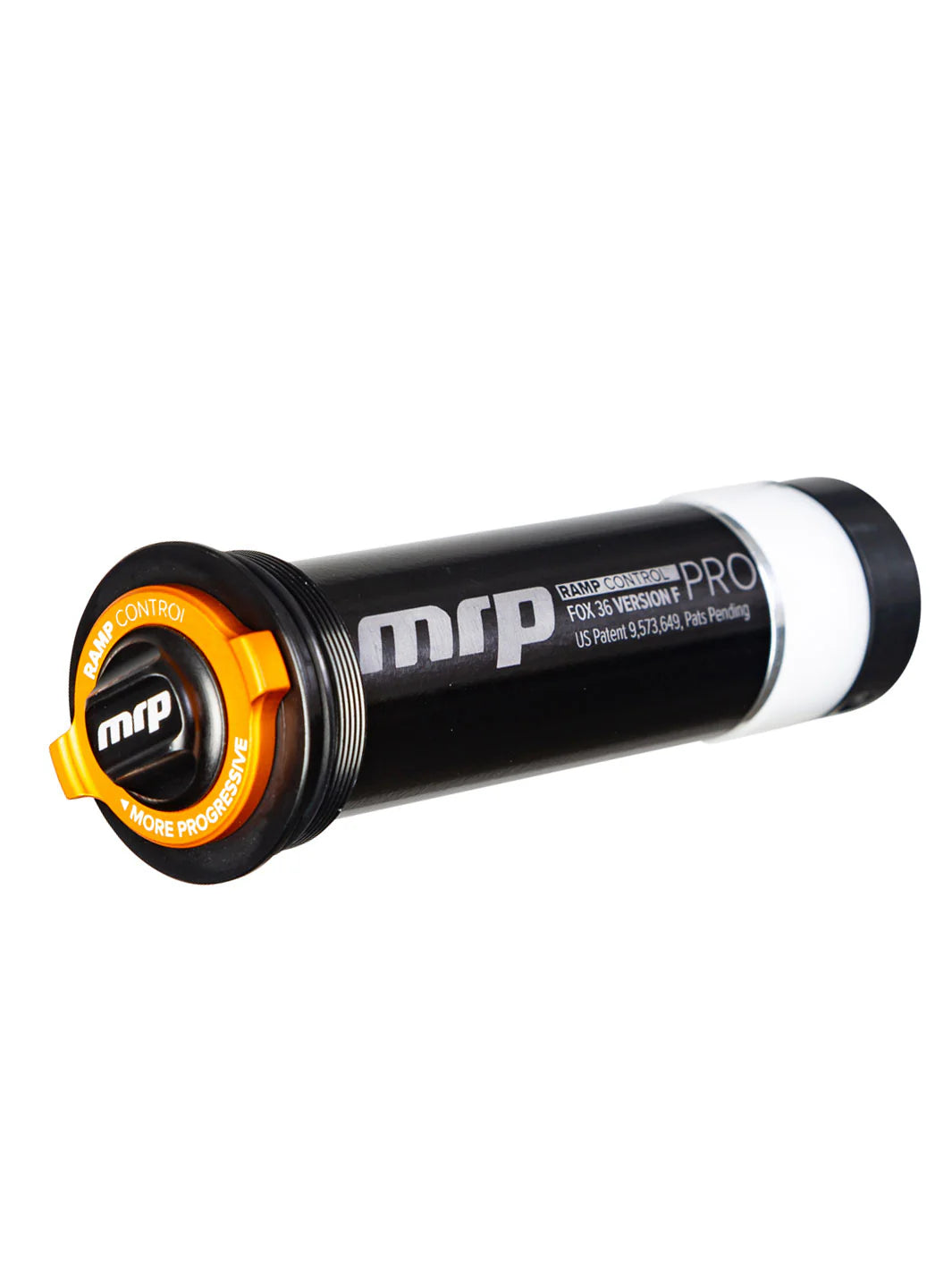

    Fox 36 - Model F Pro

    • 2018 and newer Fox 36 Float forks with the FIT 4, RC2, and Grip dampers.Recommended for 140-180mm 29”, 27.5+, and 27.5”forks
    • 2019-2020 Marzocchi Z1, all travel options
    • Version F is a cartridge-only kit suitable for 2018 Fox 36 forks of all travel and wheelsize options. A revised air-spring design in Fox's latest 36 makes the Fulfill™ spring conversion included in Ramp Control Upgrade Version D incompatible.

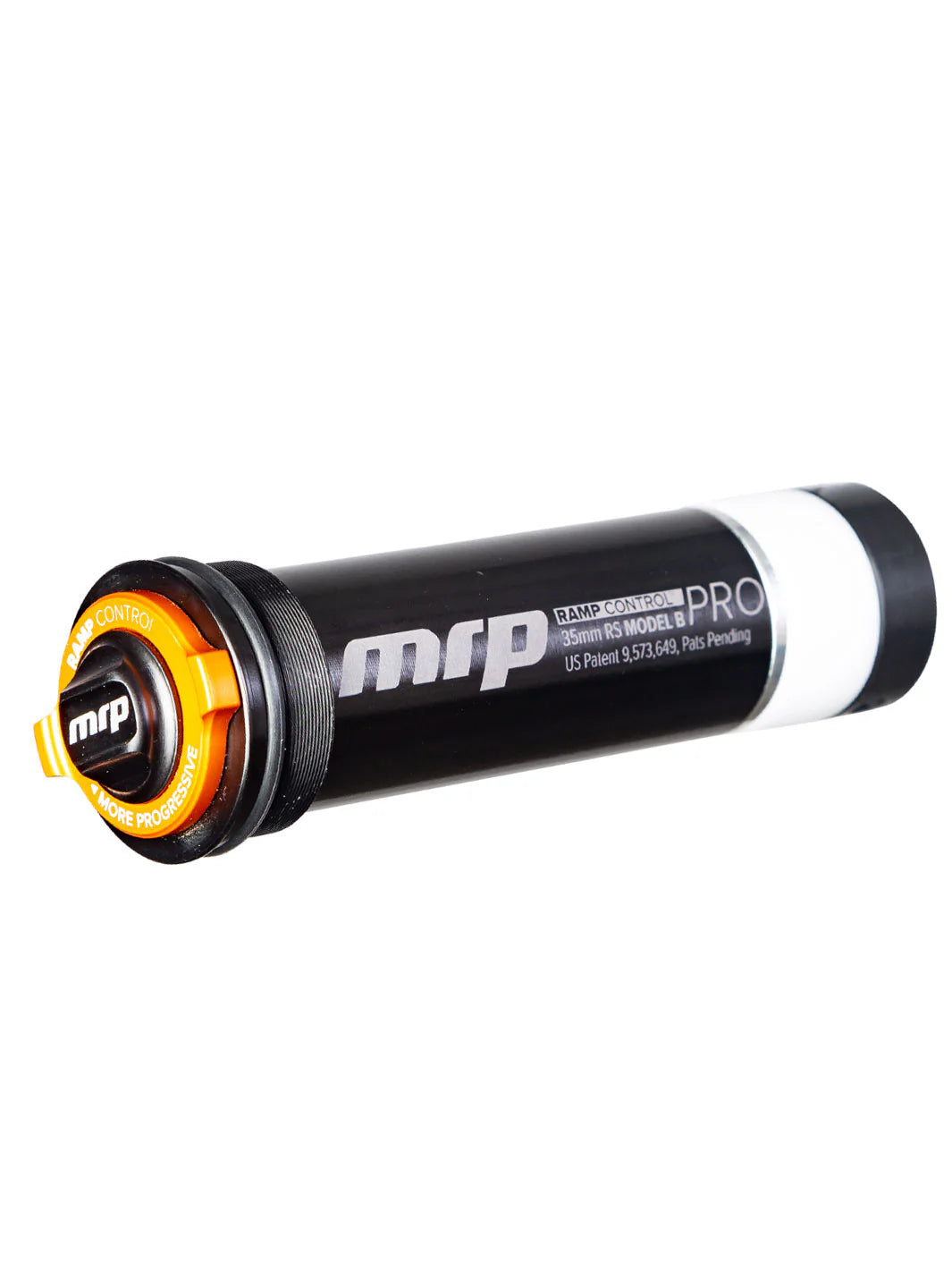

    RS 35mm - Model B Pro

    • 2015 and newer Pike forks with "Boost" 15x110 axle spacing and all 2017 and newer Pike forks (regardless of axle spacing)
    • 2017 and newer Lyrik and Yari forks
    • 2017 and newer Revelation (35mm)
    • Not compatible with Dual Position Air forks. Recommended for 140mm+ 29”, 27.5+, and 27.5” forks

    Huck Puck Compatibility by Model

      View full details
