MRP Ramp Control Cartridge - Rockshox

MRP Ramp Control Cartridge - Rockshox

$290.00 AUD
$290.00 AUD
Sale Sold out
Tax included.

Upgrade your Rockshox Forks with the MRP Ramp Control Cartridge. This easy-to-install air spring upgrade allows for on-the-fly adjustments and provides improved performance. With Ramp Control technology, you no longer need to use volume spacers to tune your air spring, making it the best alternative for optimal performance.

The Inside Line:
MRP Ramp control cartridges provide the ability to adjust volume spacers on trail instead of waiting to finish your ride.

Features:

  • Replaces factory air fill valve and volume spacers
  • 16-position knob to control end-stroke progression (ramp)
  • Speed-sensitive

MORE CONVENIENT

Tokens and volume spacers aren’t friendly to on-trail experimentation and tuning. Ramp Control provides precise control over air spring support via a 16-position knob with crisp, clear detents. In seconds, you can perfectly dial-in your fork for ANY trail , on-the-fly.

PERFECT PERFORMANCE

Progressive, volume-reduced air springs can worsen ride quality and buck you off line in slow, technical riding. A benefit of its speed-sensitive nature, Ramp Control gives you additional spring support only when you’d WANT it.

STRAIGHTFORWARD

Volume-tuning requires changes to air-pressure and damper settings, meaning one change necessitates several others. Ramp Control unlocks exacting control of spring support independent of these other settings.

A BETTER WAY TO TUNE

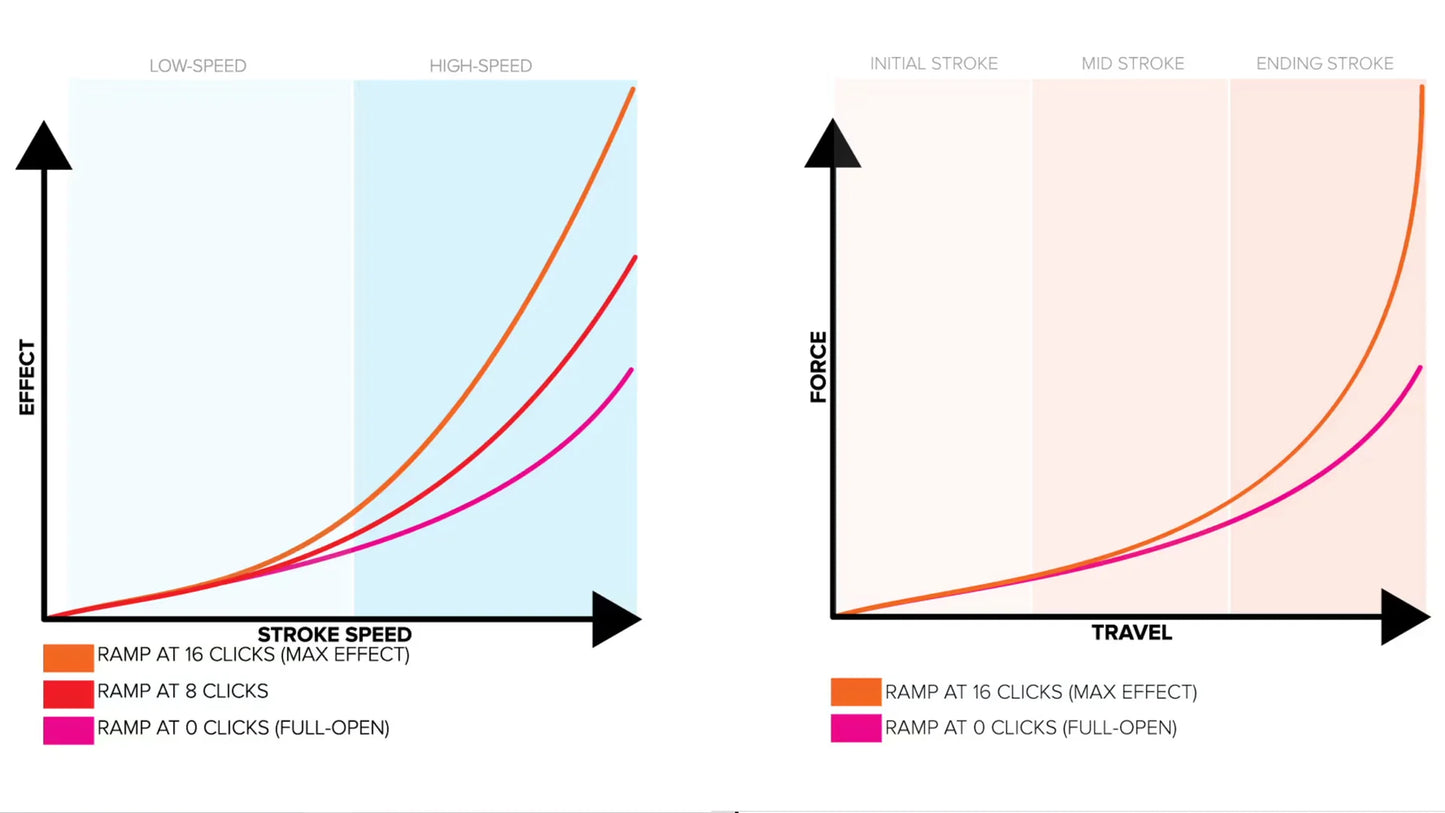

Volume adjustment spacers change the shape of the air-spring’s curve throughout the entire travel range, regardless of velocity. Aside from the slight change resulting from the volume of the cartridge itself, the Ramp Control upgrade affects only the ending stroke spring curve - as its damping effect is velocity-dependent. This portion of the curve represents intense, sharp hits and big events, like landing a sizable drop or plowing through a rock garden. Without Ramp Control, your fork’s behavior in these circumstances has been compromised by your desired feel elsewhere in the stroke. With Ramp Control, you can tune the general feel of your fork through its air-pressure and damper settings, and isolate big-hit performance and bottom-out with the Ramp Control adjustment.



Compatibility:

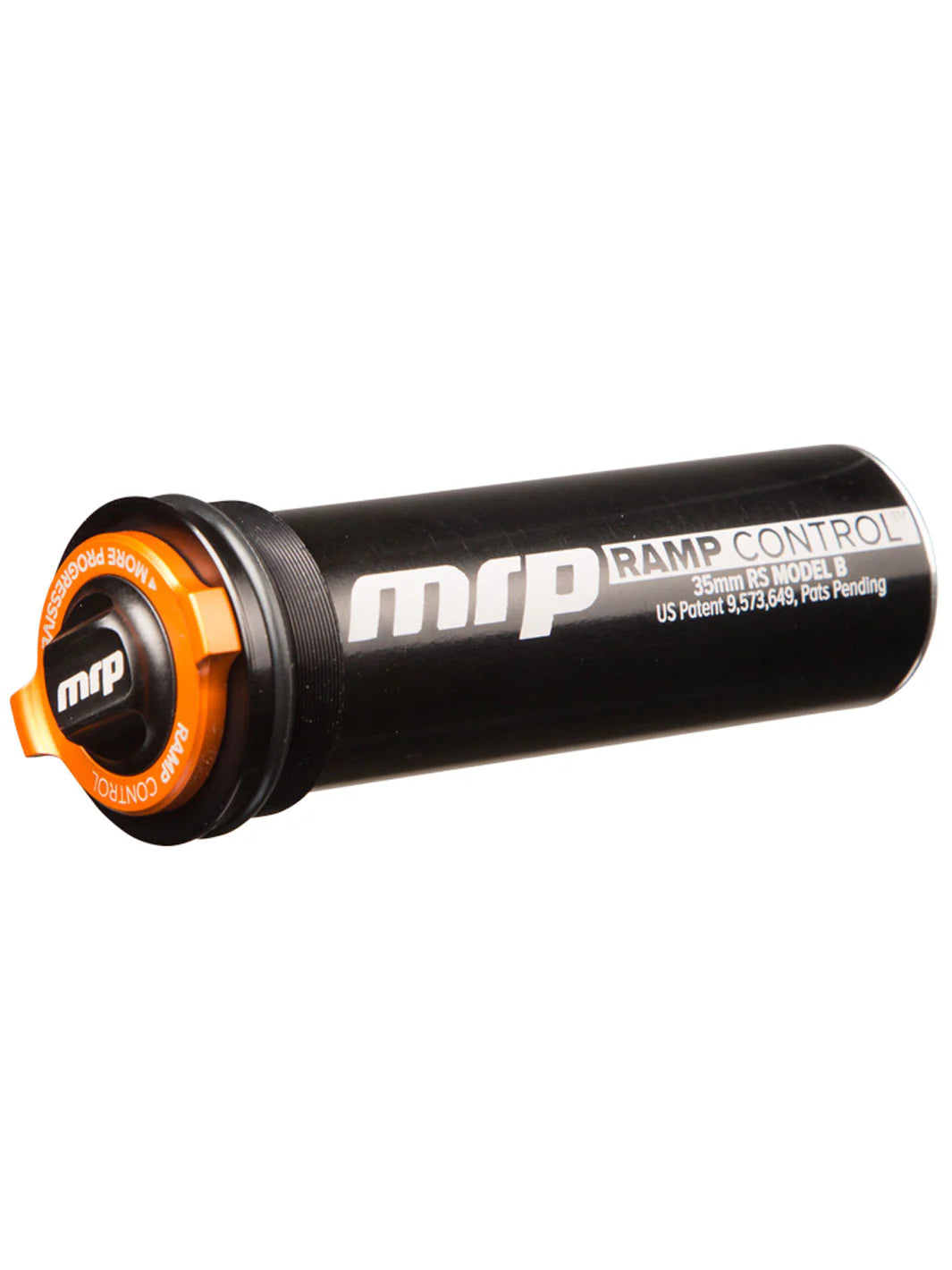

    RS 35mm - Model B

    • 2015 and newer Pike forks with "Boost" 15x110 axle spacing and all 2017 and newer Pike forks (regardless of axle spacing). Recommended for 140mm+ 29”, 27.5+, 26” and 27.5” forks
    • 2017 and newer Lyrik and Yari forks.Recommended for 140mm+ 29”, 27.5+, 26” and 27.5” forks
    • 2017-2022 Revelation (35mm).Recommended for 140mm+ 29”, 27.5+, and 27.5” forks

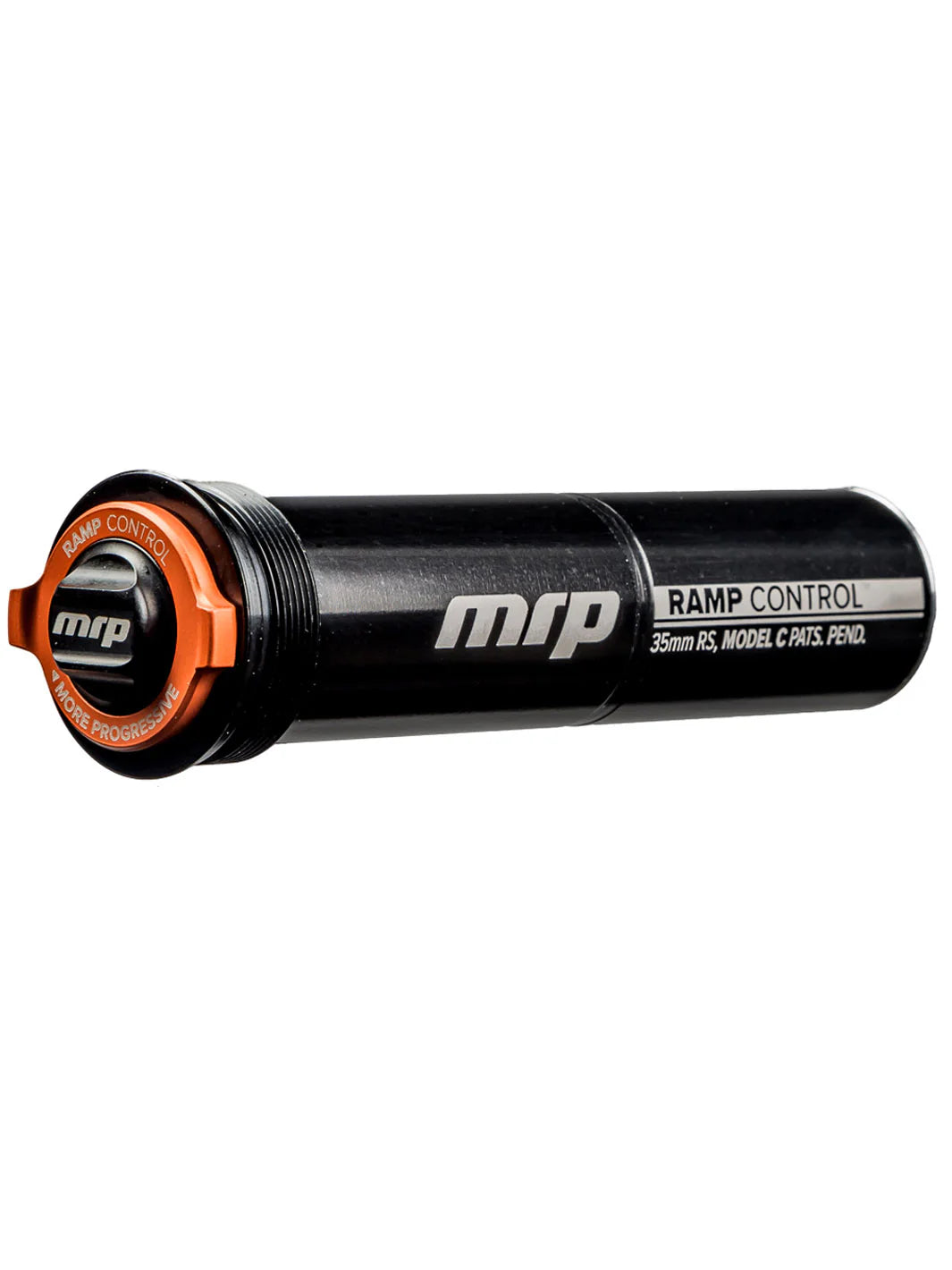

    RS 35mm - Model C (long-body)

    • 2013-2016 Pike forks with 15x100 axle spacing. Solo air models only. Recommended for 120 and 130mm 29” and 120mm 26” and 27.5” forks.Recommended for 120 and 130mm 29”/27.5+and 120mm 27.5”and 26” forks

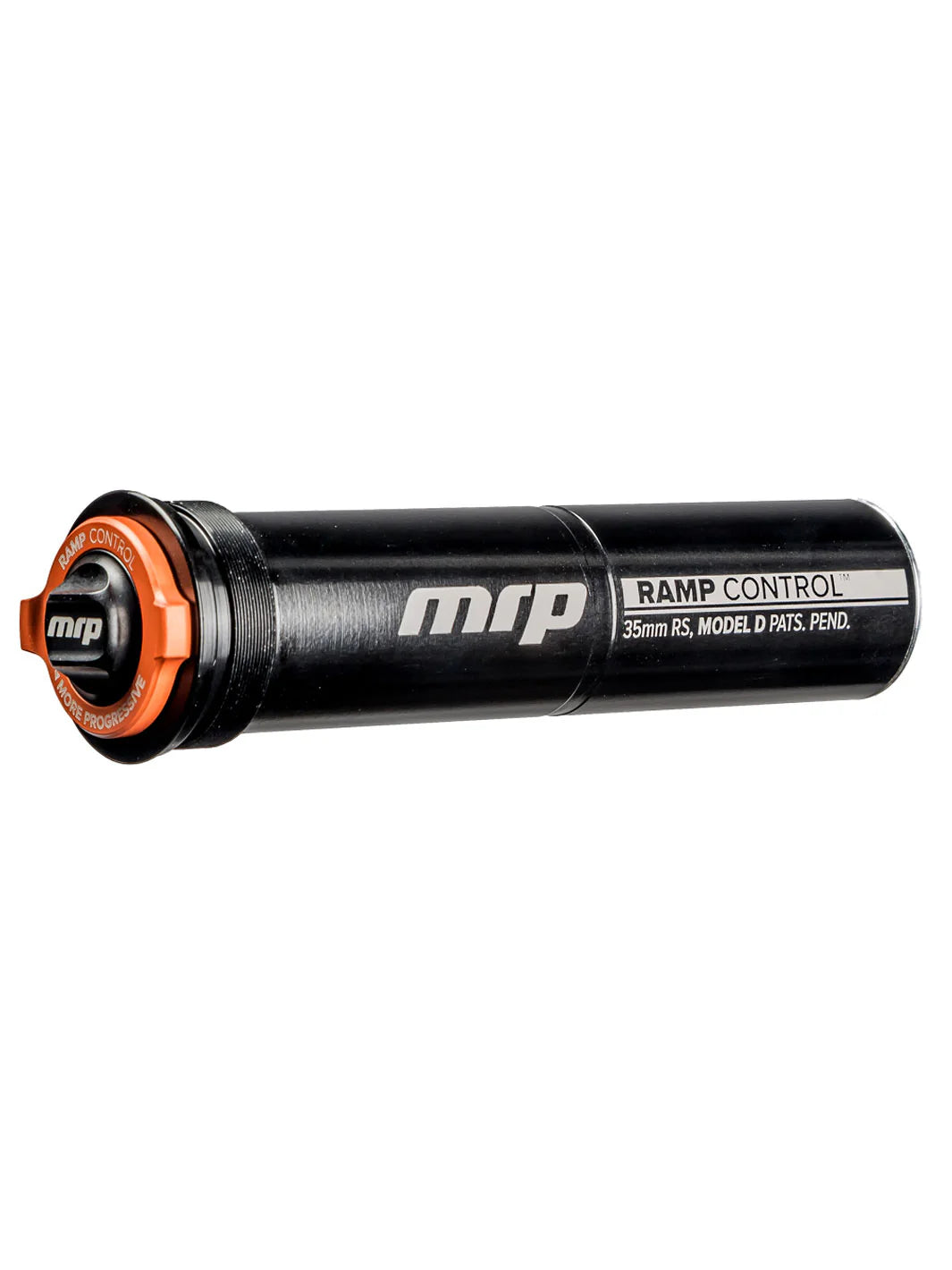

    RS 35mm Ramp Control Cartridge Model D (long-body)

    • 2015-2022 Pike forks with "Boost" 15x110 axle spacing, all 2017 and newer Pike forks (regardless of axle spacing).Recommended for 120 and 130mm 29”/27.5+ and 120mm 27.5”and 26” forks
    • 2017-2022 Revelation (35mm). Recommended for 120 and 130mm 29”/27.5+ and 120mm 27.5” forks

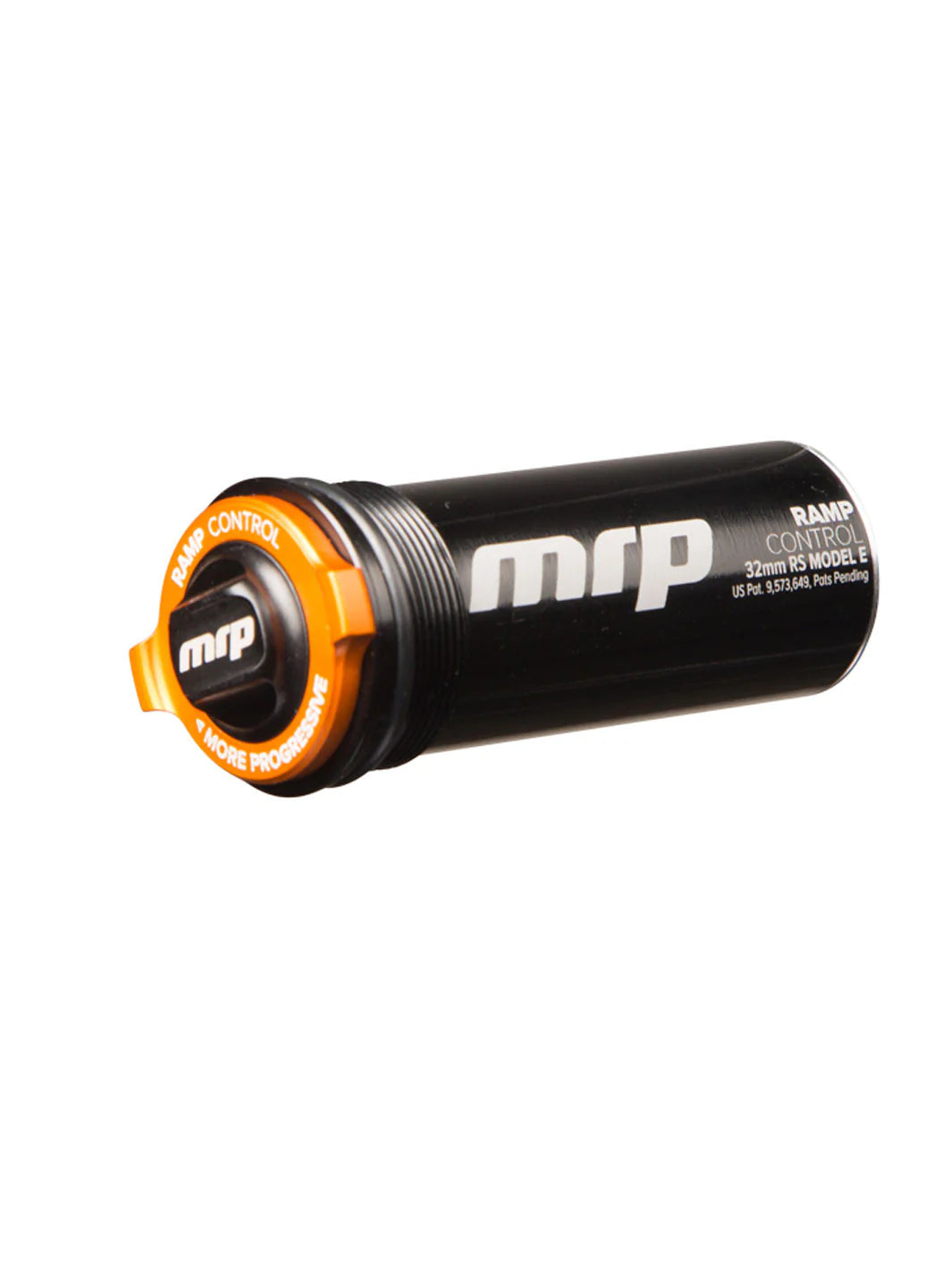

    RS 32mm - Model E

    • 2013 - 2019 Reba, Revelation , and SID forks (32mm models only)and 2014 and newer Rock Shox Bluto forks. Recommended for 100-140mm 29”, 27.5+, 27.5”, 26”, and Fat forks.
    • Not compatible with 2020 or newer SID forks (32 or 35mm chassis)

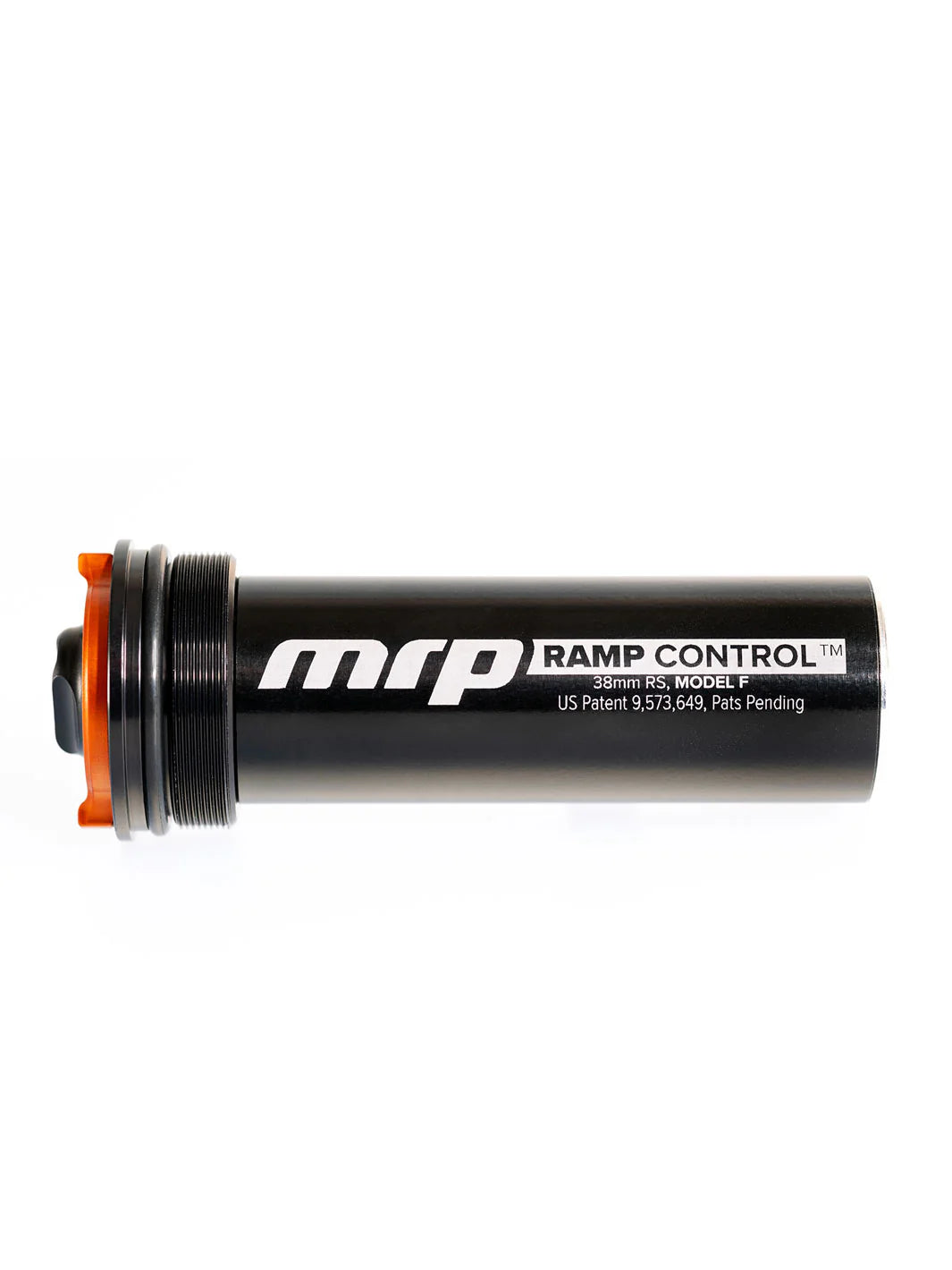

    RS 38mm - Model F

    • 2020 and newer Zeb forks. Compatible with all travels and both wheel-size options.
